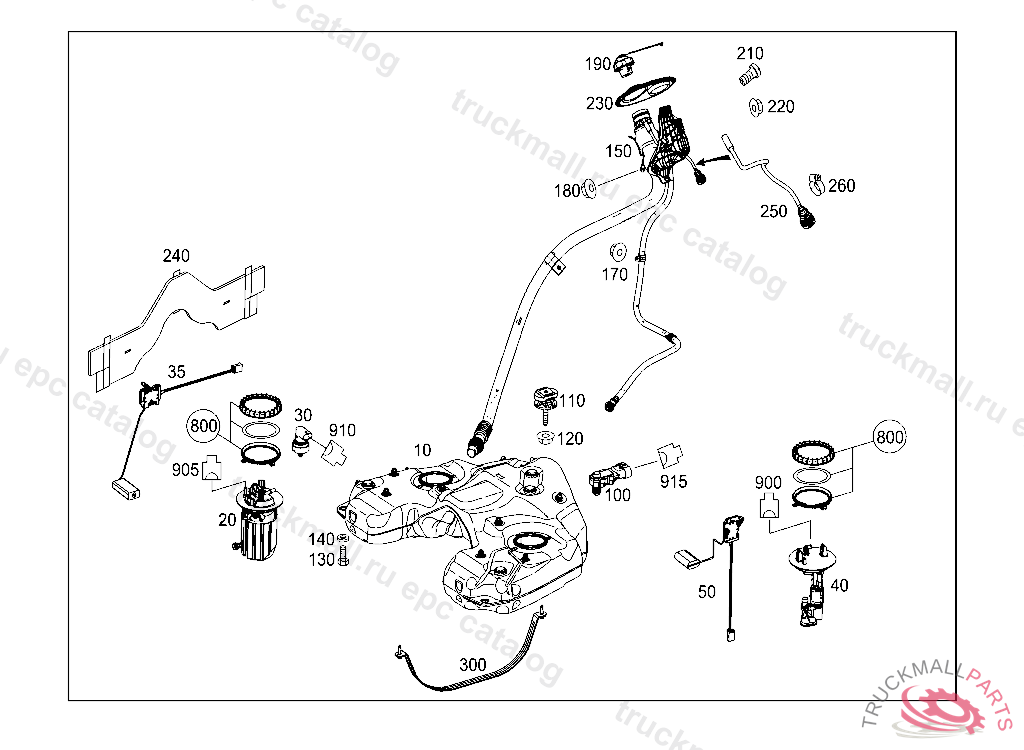

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK
20
FUEL DELIVERY MODULE IN TANK AT RIGHT WITHOUT FUEL LINES
20
FUEL DELIVERY MODULE GASOLINE ENGINE, A 11994820100930801
30
PRESSURE SENSOR
35
FUEL GAUGE TRANSMITTER DELIVERY UNIT
40
FUEL FILTER UNIT IN TANK AT LEFT WITHOUT FUEL LINES
50
FUEL GAUGE TRANSMITTER
100
PRESSURE SENSOR
110
BRACKET TANK ATTACHMENT
120
COMBINATION NUT TANK TO BODYSHELL M8
130
SCREW SUPPORT TO FENDER
140
WASHER BRACKET TO CAB REAR PANEL
150
FILLER NECK
150
FILLER NECK
170
NUT VALVE TO BRACKET
170
NUT COVERING TO CAB FIRE WALL
180
NUT-AND-WASHER ASSEMBLY BRACKET TO FLOOR M6
190
TANK FILLER CAP TO FILLER NECK
190
FUEL FILLER CAP TO FILLER NECK
210
BOLT RIGHT END PIECE
220
HEXAGON NUT W FLANGE MOUNTING FOR INTERFERENCE SUPPRESSION FILTER M6
230
SEAL F FILLER NECK BETWEEN WHEELHOUSE LINER AND LOCKING BASE
250
VENTING LINE TO FUEL TANK
260
CLAMP LINE MOUNTING 15-18 MM,V 207570
300
RETAINING STRAP TANK TO BODYSHELL
800
SCREW CONNECTION PARTS KIT
900
CLUTCH HOUSING FUEL SUPPLY, LEFT B4/1
905
CLUTCH PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 7-PIN SLK2.8, MLK1.2,X36/3
910
CLUTCH VACUUM SENSOR IN BRAKE UNIT 3-PIN MLK1.2,B64/1
915
SOCKET HOUSING. PIN BUSHING HOUSING BLINKER-AND-SIDE-MARKER LAMP
