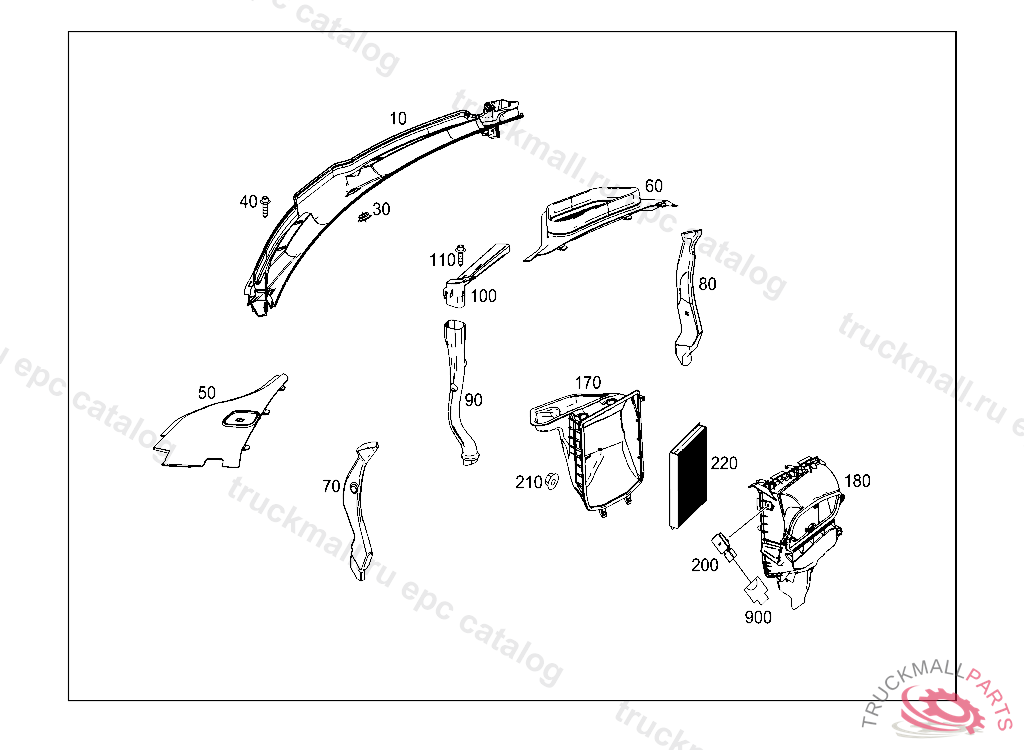

Поз.
Артикул
Описание
10
WATER BAFFLE
30
BUSHING
40
TAPPING SCREW BRACKET TO CAB FLOOR
50
COVER
60
COVER AIR INTAKE AIR INLET
70
DRAINAGE PIPE LEFT
80
DRAINAGE PIPE RIGHT
90
DRAIN PIPE CENTRAL
100
DRAIN PIPE TRANSVERSE DUCT,TOP
110
TAPPING SCREW BRACKET TO CAB FLOOR
170
INTAKE BOX FRONT PART
180
HOUSING AIR INTAKE AIR INTAKE
200
SENSOR GASEOUS POLLUTANT SENSOR
210
NUT-AND-WASHER ASSEMBLY BRACKET TO FLOOR M6
220
DUST FILTER , Replaced By: A1668300218
220
DUST FILTER
900
PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
