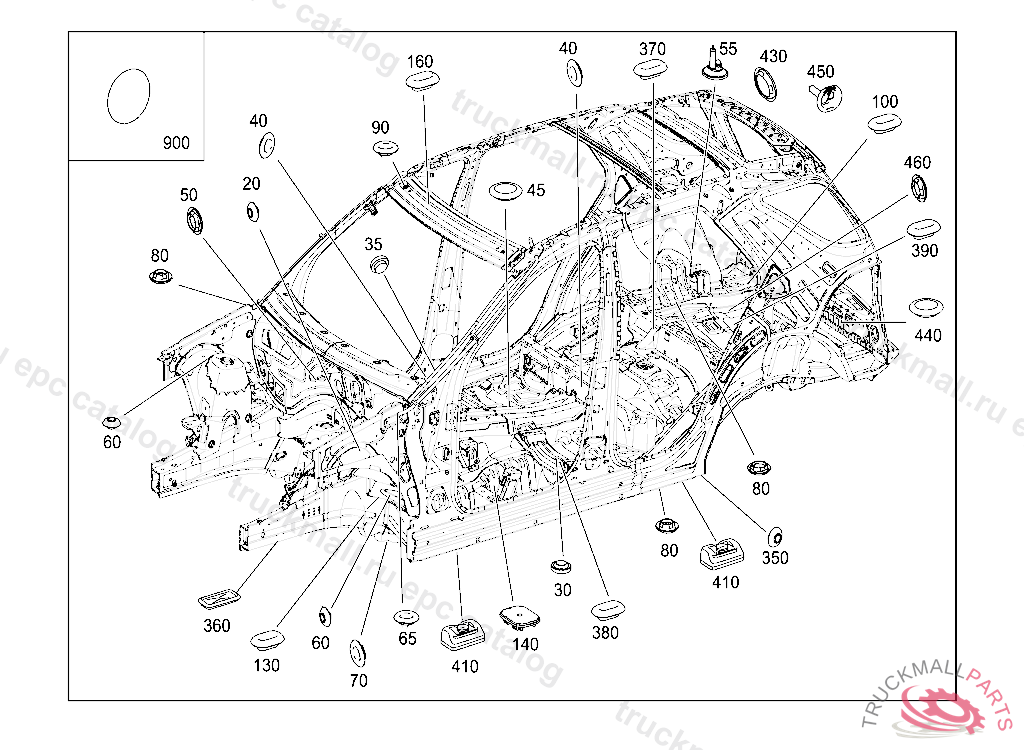

Поз.
Артикул
Описание
20
STOP PLUGD10MM
30
STOP PLUG BATTERY CASE 6.5 MM
35
PLUG ON A-PILLAR
40
PLUG
40
PLUG20 MM
45
EXPANSION PLUG AT CENTER TUNNEL AT RIGHT
50
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
55
GROMMET REAR BUMPER
60
STOP PLUG SIDE MEMBER,FRONT 25 MM
70
STOP PLUG E-RECESS CENTER 30 MM
80
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
80
WATER DRAIN GROMMET FRONT LEFT BOTTOM
90
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
100
STOPPER WASHER INSIDE PART RIGHT 15X25 MM
130
STOP PLUG
140
CAP
160
STOP PLUG WHEELHOUSE INSIDE, LEFT REAR
350
STOP PLUG ROCKER PANEL LEFT REAR 20 MM
350
PLUG TO BODY 10 MM, J 78221020091022
360
STOP PLUG LEFT
370
STOPPER WASHER INSIDE PART RIGHT 15X25 MM
380
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
390
STOPPER WASHER AT CROSS MEMBER, REAR AXLE 20X30 MM
410
REST JACK
410
FIXTURE LEFT VEHICLE JACK SUPPORT POINT
430
STOP PLUG E-RECESS CENTER 30 MM
440
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
450
CABLE GROMMET IN REAR END, L 00000120120601 M 00000120120601 A 05649820120224
460
STOP PLUG35 MM
900
ADHESIVE TAPE PIPING
