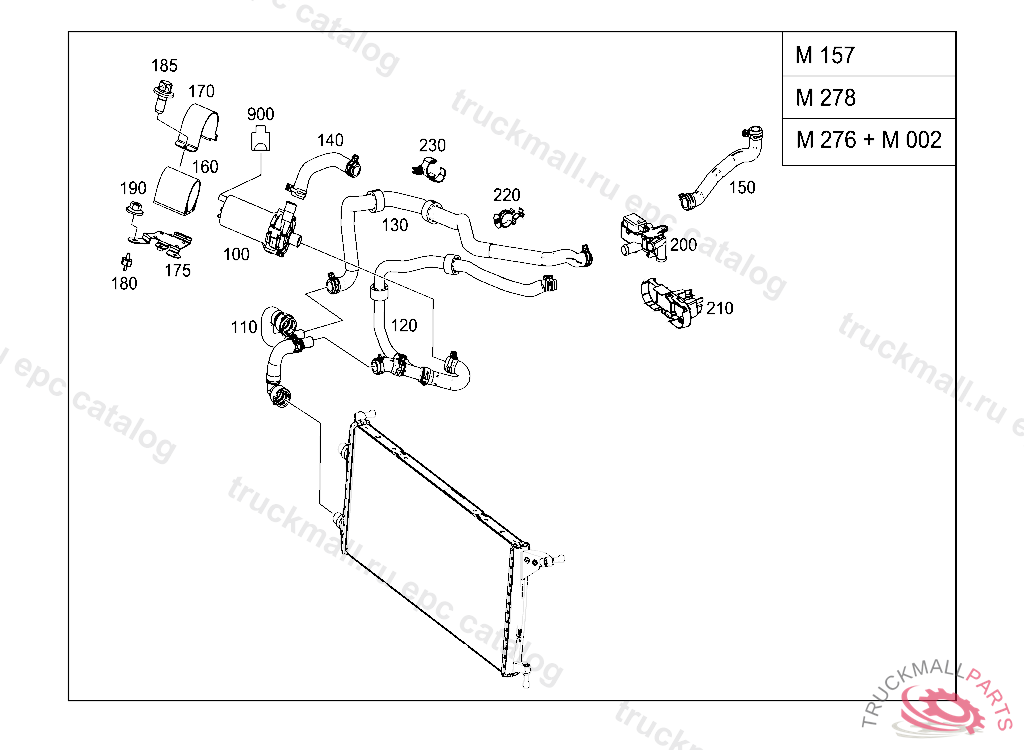

ML 400 4MATIC - 166.056 - 50 RADIATOR
Поз.
Артикул
Описание
100
COOLANT PUMP
110
COOLANT HOSE LOW-TEMPERATURE RADIATOR AT ENGINE
120
COOLANT HOSE FILLING HOSE AT WATER PUMP
130
COOLANT HOSE FILLING HOSE TO EXPANSION TANK
140
COOLANT HOSE PUMP TO RADIATOR
160
GROMMET
175
BRACKET
180
BUFFER TO COMPRESSOR
185
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
190
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
900
CONNECTOR HOUSING RECIRCULATING PUMP CHARGE AIR INTER- COOLING M44
