Mercedes A1666101110 - Продольная балка

ML 320 4MATIC 166.062

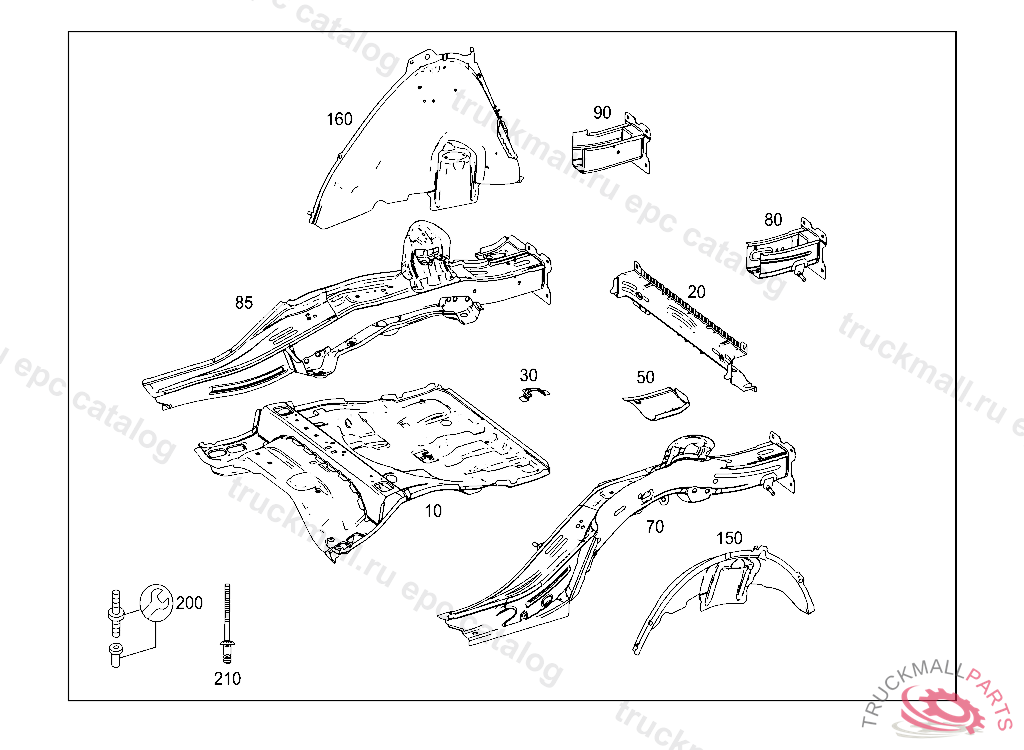

61 SUBSTRUCTURE - 045 REAR END FLOOR

Поз.
Артикул
Описание
10
A1666100475
SPARE WHEEL RECESS
20
A1666100017
CROSS MEMBER
30
A1246183331
CONSOLE
50
A1646100655
BOTTOM RIGHT
50
A1646100555
BOTTOM LEFT REAR FLOOR
70
A1666100710
LONGITUDINAL MEMBER LEFT
80
A1666101110
LONGITUDINAL MEMBER LEFT
85
A1666100810
LONGITUDINAL MEMBER RIGHT
90
A1666101210
LONGITUDINAL MEMBER RIGHT
150
A1666100576
WHEEL HOUSE LEFT
160
A1666100676
WHEEL HOUSE RIGHT
200
A0009901210
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
210
A0009917632
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
