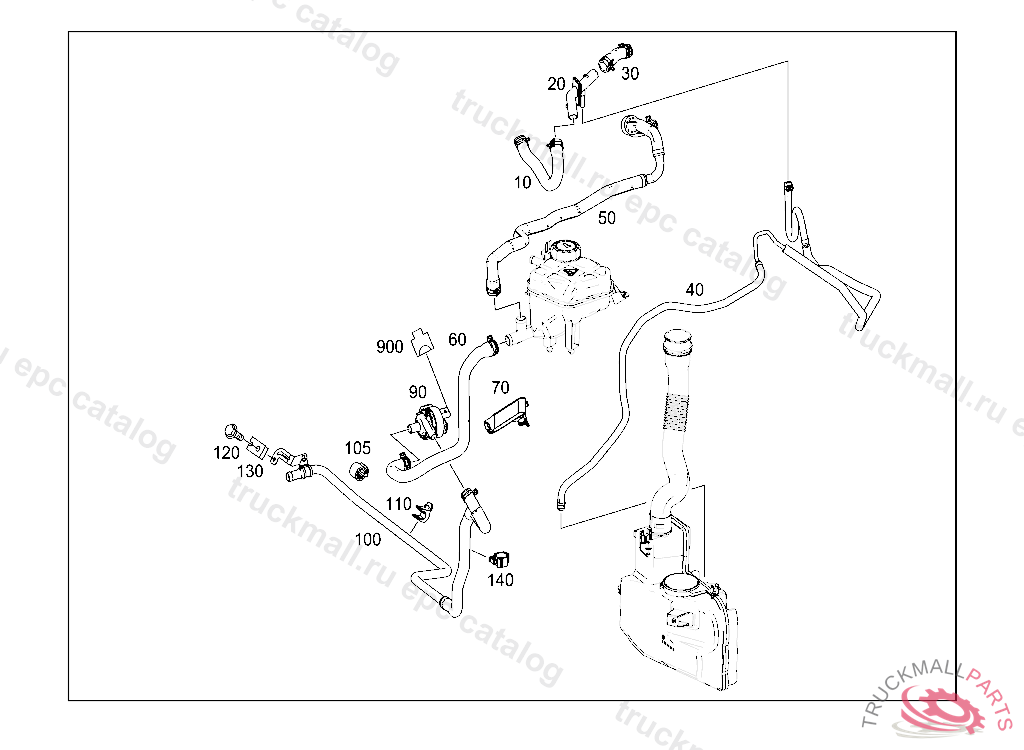

Поз.
Артикул
Описание
10
HOSE ASSEMBLY
20
HOSE CONNECTION FITTING INTERMEDIATE PIECE
20
HOSE CONNECTION FITTING INTERMEDIATE PIECE
20
HOSE CONNECTION FITTING INTERMEDIATE PIECE
20
HOSE CONNECTION FITTING INTERMEDIATE PIECE
30
HOSE ASSEMBLY FROM INTERMEDIATE PIECE TO HEAT EXCHANGER
30
HOSE ASSEMBLY FROM INTERMEDIATE PIECE TO HEAT EXCHANGER
40
HOSE ASSEMBLY WASHER FLUID RESERVOIR, A 20131011
40
HOSE ASSEMBLY WASHER FLUID RESERVOIR, A 20131011
50
HOSE ASSEMBLY HEAT EXCHANGER
50
HOSE ASSEMBLY HEAT EXCHANGER
60
HEATING WATER HOSE CIRCULATION PUMP
60
HOSE ASSEMBLY CIRCULATION PUMP
60
HOSE ASSEMBLY CIRCULATION PUMP
70
LINE FASTENER HOSE LINE
90
PUMP CIRCULATION PUMP
100
HOSE ASSEMBLY FROM RETURN LINE TO RECIRCULATING PUMP
110
LINE FASTENER HOSE LINE
120
HEXALOBULAR BOLT. SCREW
130
LOCK NUT. SPRING NUT STEP TO ENTRANCE
140
LINE FASTENER RETURN LINE FASTENING
900
PLUG HOUSING HORN AT RIGHT 2 PIN SLK2.8,H2/1
