Поз.
Артикул
Описание

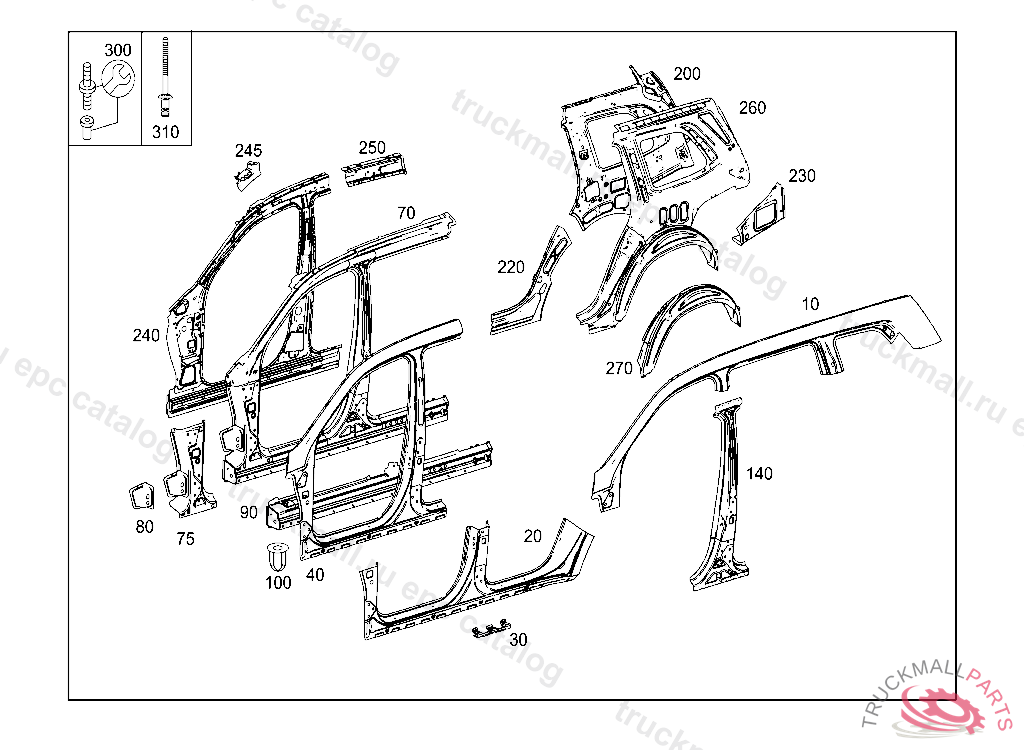

10
OUTER ROOF FRAME OUTSIDE LEFT
10
OUTER ROOF FRAME OUTSIDE RIGHT
20
COVER LONGITUDINAL MEMBER OUTSIDE LEFT
20
COVER LONGITUDINAL MEMBER OUTSIDE RIGHT
30
MOUNTING CLAMP RIGHT
40
SIDEWALL OUTSIDE LEFT
40
SIDEWALL OUTSIDE RIGHT
70
REINFORCEMENT LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 28663320130812, Replaced By: A1666309301
70
REINFORCEMENT LEFT
70
REINFORCEMENT RIGHT
75
A-PILLAR OUTSIDE LEFT
75
A-PILLAR OUTSIDE RIGHT
80
REINFORCEMENT LEFT (CRASHBOX)
80
REINFORCEMENT RIGHT (CRASHBOX)
90
LONGITUDINAL MEMBER LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 28663320130812, Replaced By: A1666309501
90
LONGITUDINAL MEMBER LEFT
90
LONGITUDINAL MEMBER RIGHT
100
RIVETED NUT NET RETAINER M6
140
B-PILLAR INSIDE RIGHT
140
B-PILLAR INSIDE LEFT
200
SIDEWALL REAR INSIDE, LEFT
200
SIDEWALL REAR INSIDE, RIGHT
220
LONGITUDINAL MEMBER BOTTOM INSIDE RIGHT
220
LONGITUDINAL MEMBER BOTTOM INSIDE LEFT
230
REAR-END FLOOR RIGHT
230
REAR-END FLOOR LEFT
240
SIDEWALL INSIDE RIGHT
240
SIDEWALL INSIDE LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 28663320130812, Replaced By: A1666308302
240
SIDEWALL INSIDE LEFT
245
REINFORCEMENT INSIDE LEFT
245
REINFORCEMENT INSIDE RIGHT
250
ROOF FRAME INSIDE REAR RIGHT
250
ROOF FRAME INTERIOR,REAR,LEFT
260
C-PILLAR LEFT
260
C-PILLAR RIGHT
270
WHEELHOUSE OUTER REAR RIGHT
270
WHEEL HOUSE REAR LEFT
270
WHEEL HOUSE REAR LEFT, Replaced By: A1666309100
300
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
310
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
