Поз.
Артикул
Описание

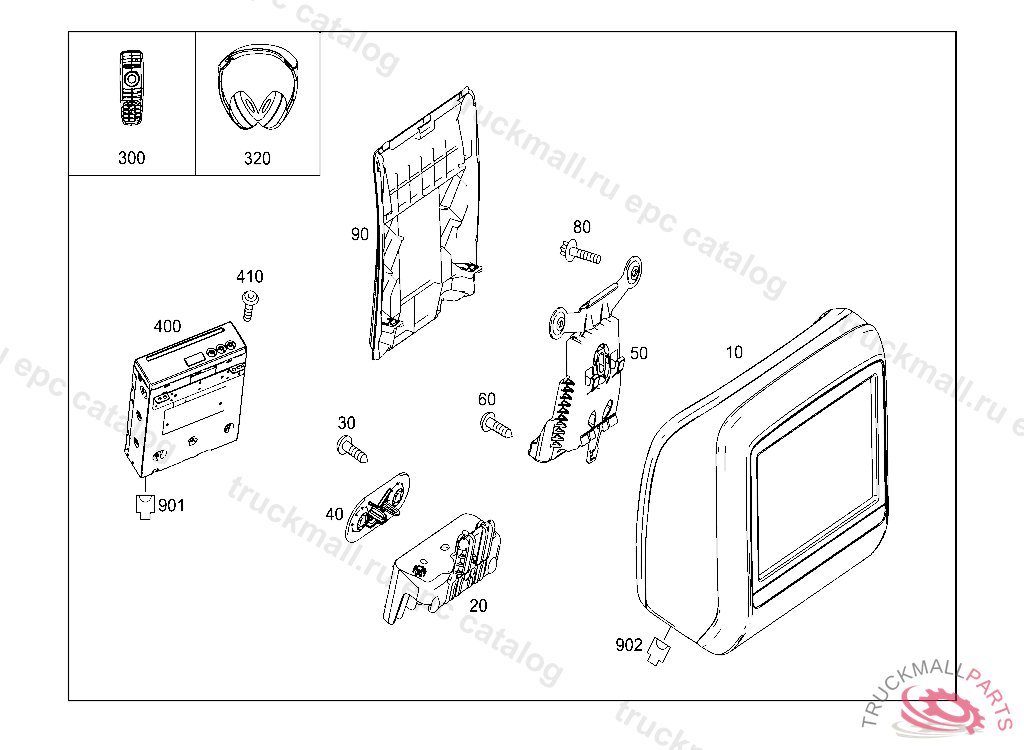

10
CONTROL UNIT RIGHT MONITOR
20
BRACKET RIGHT SEAT, A 13822120120928803
30
BOLT BACKREST SHELL TO BACKREST FRAME 5X18
40
REINFORCEMENT RIGHT SEAT, L 00000320120531 M 00000320120531 A 01447020110930802
50
BRACKET RIGHT SEAT
60
BOLT BACKREST SHELL TO BACKREST FRAME 5X18
80
HEXALOBULAR BOLT BRACKET MOUNTING M6X25
80
HEXALOBULAR BOLT DRIER TO CONDENSER M5X10
90
COVER LEFT SEAT
300
REMOTE CONTROL , A 02295520080930809 A 02654120100930801
300
REMOTE CONTROL , A 02430720090731800
320
HEADPHONE
320
HEADPHONE
400
CONTROL OPERATING UNIT, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
410
SHEET METAL SCREW BRACKET TO SUPPORT
901
HOUSING. PLUG
902
CLUTCH REAR ENTERTAINMENT DISPLAY 8-PIN MQS,A40/5*2, A40/6*2
902
CLUTCH DOOR CONTROL UNIT AT DRIVER DOOR, LEFT AND RIGHT 8-PIN MQS,TM3-B, N69/1, N69/2
