Поз.
Артикул
Описание

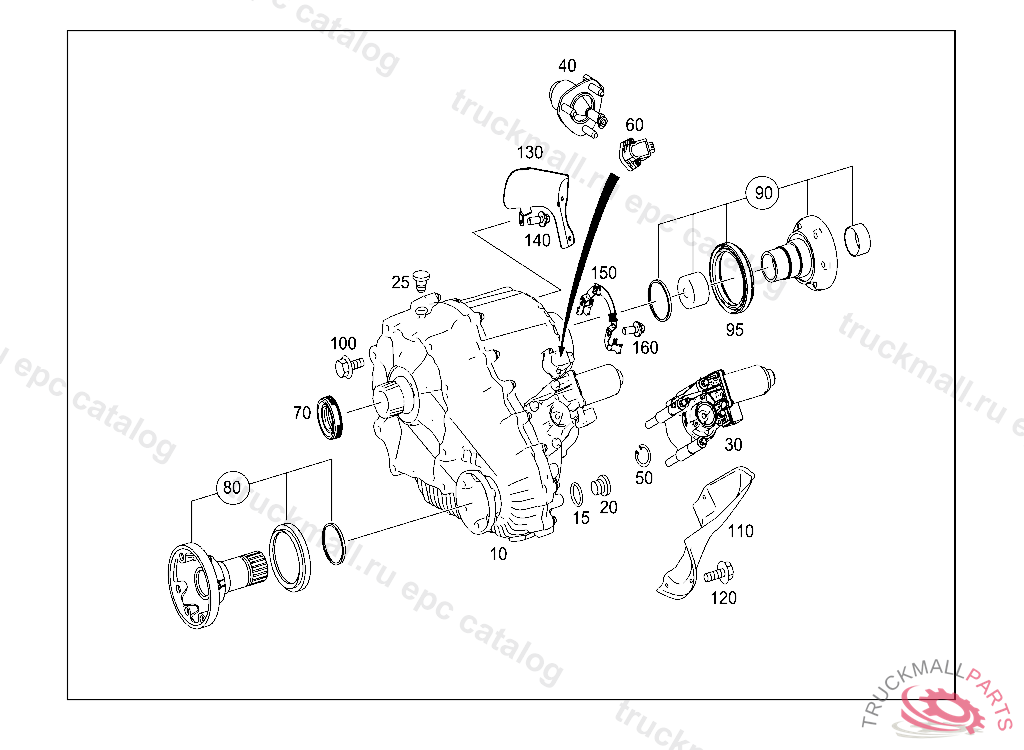

10
LONG. TRANSFER CASE , A 20140122
10
LONG. TRANSFER CASE , A 20140122
15
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
20
SCREW PLUG
25
BREATHER NOT FOR: A 251 280 14 00 AND A 251 280 21 00
30
TS ELECTRIC MOTOR
40
SOLENOID SWITCH
50
RETAINING RING
60
SENSOR
70
SHAFT SEAL
80
FLANGE TO FRONT AXLE
95
SEAL RING TO REAR AXLE 52-67-8/12
100
SCREW W RND. HEXAL. HEAD BRACKET MOUNTING M10X40
100
HEXALOBULAR BOLT. SCREW AIR COMPRESSOR TO CYLINDER CRANKCASE M10 X 40
130
SCREENING PLATE TO TRANSFER CASE
140
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
150
BRACKET TO TRANSFER CASE
160
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
