Mercedes A1666100676 - АРКА КОЛЕСА

GL 63 AMG 166.874

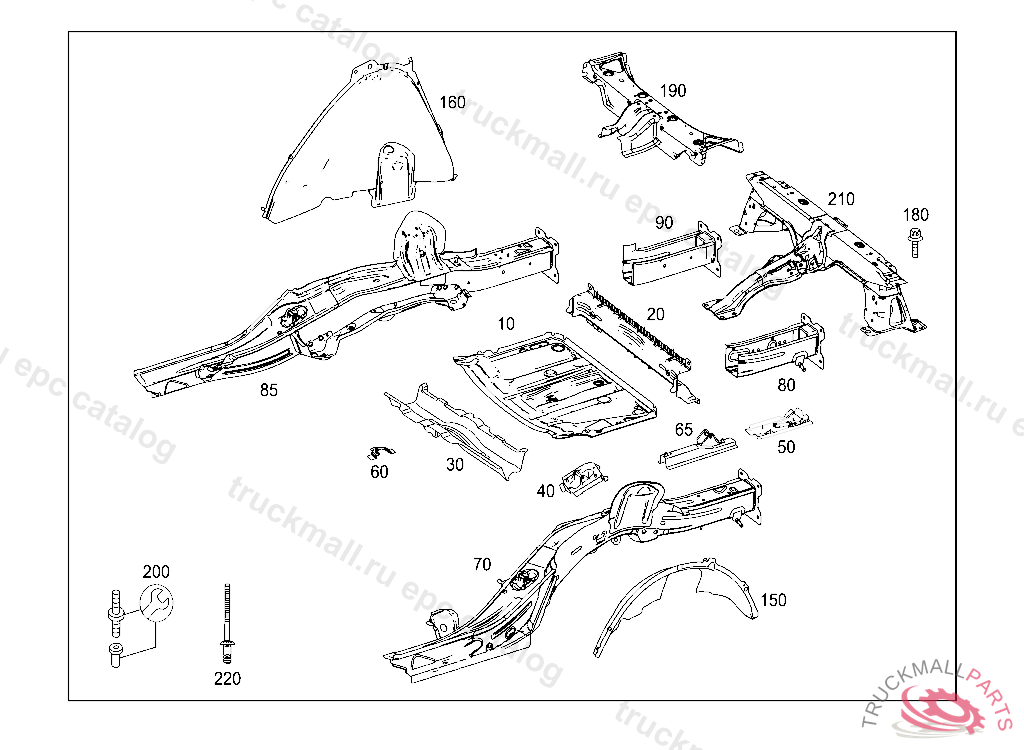

61 SUBSTRUCTURE - 045 REAR END FLOOR

Поз.
Артикул
Описание
10
A1666101100
SPARE WHEEL RECESS
20
A1666100017
CROSS MEMBER
30
A1646101820
CROSS MEMBER REAR
40
A1646101231
CONSOLE REAR OUTSIDE RIGHT, NO LONGER AVAILABLE
50
A1646100855
BOTTOM RIGHT REAR FLOOR
50
A1646100755
BOTTOM LEFT REAR FLOOR
60
A1246183331
CONSOLE
65
A1646100036
BRACKET REAR INSIDE, RIGHT
70
A1666101500
LONGITUDINAL MEMBER LEFT
80
A1666101700
LONGITUDINAL MEMBER LEFT
85
A1666101600
LONGITUDINAL MEMBER RIGHT
90
A1666101800
LONGITUDINAL MEMBER RIGHT
150
A1666100576
WHEEL HOUSE LEFT
160
A1666100676
WHEEL HOUSE RIGHT
180
N910143010011
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
190
A1646100417
CROSS MEMBER REAR
200
A0009901210
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
210
A1646100720
CROSS MEMBER REAR
220
A0009917632
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
