Mercedes A1668003515 - Шланг

GL 63 AMG 166.874

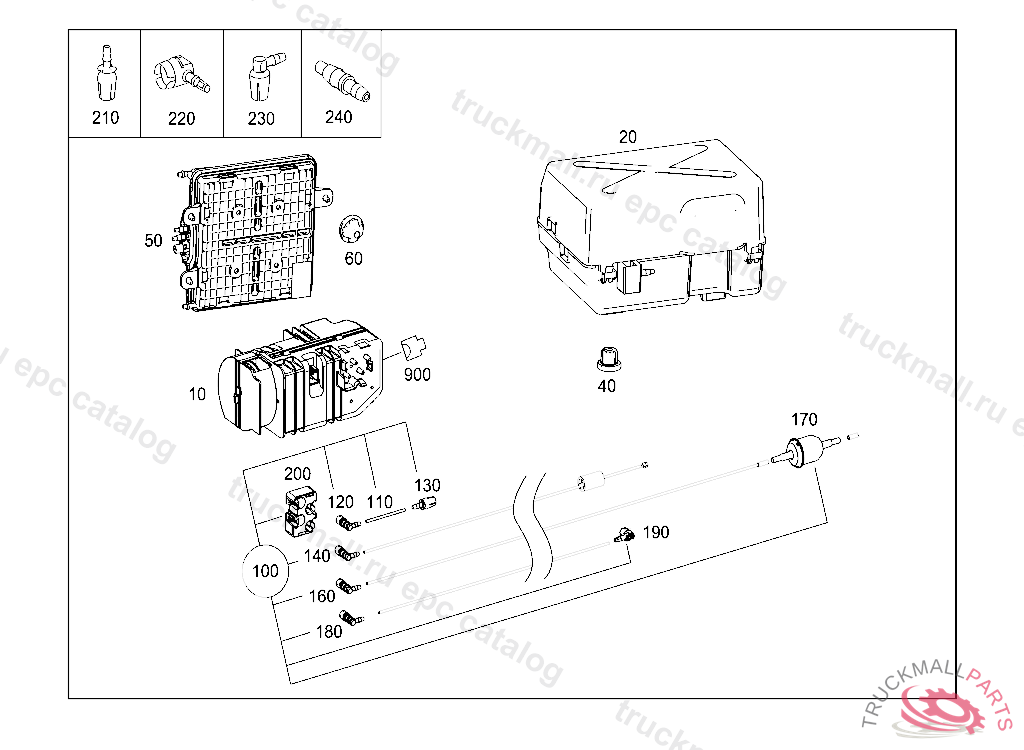

80 VACUUM SYSTEM / HYDRAULIC SYSTEM - 040 VACUUM PUMP AND CONNECTOR

Поз.
Артикул
Описание
10
A0008005648
PNEUMATIC PUMP IM LUGGAGE COMPARTMENT, A 02401720090630 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
20
A1668000218
BRACKET
40
A0009903662
NUT VALVE TO BRACKET
50
A0008005519
COMPRESSED AIR RESERVOIR
60
A2761410087
ELASTOMER BEARING
100
A1668003515
HOSE ASSEMBLY
110
A1668001915
HOSE ASSEMBLY
120
A0059978889
PLUG SOCKET
130
A0008000353
PLUG CONNECTOR SYSTEM NATURAL 6MM
140
A0059978889
PLUG SOCKET
160
A0059978889
PLUG SOCKET
170
A0000780656
AIR FILTER. STRAINER THROTTLE
180
A0059978889
PLUG SOCKET
190
A2118000253
CLUTCH HEAD RESTRAINT VALVE BLOCK
200
A2218050114
BRACKET LINE
210
A0069973589
RS PLUG CONNECTION LINE TO VALVE BLOCK
210
A0069973989
RS PLUG CONNECTION REPAIR SOLUTION LONG SOCKET B8
210
A0069974189
RS PLUG CONNECTION
210
A0069973689
RS PLUG CONNECTION REPAIR SOLUTION TULIP SOCKET B15
220
A0069974089
RS PLUG CONNECTIONB21
220
A0069973889
RS PLUG CONNECTIONB20
230
A0069973789
RS PLUG CONNECTION
240
A0069972389
PLUG CONNECTION
900
A2205453928
PLUG HOUSING. PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
