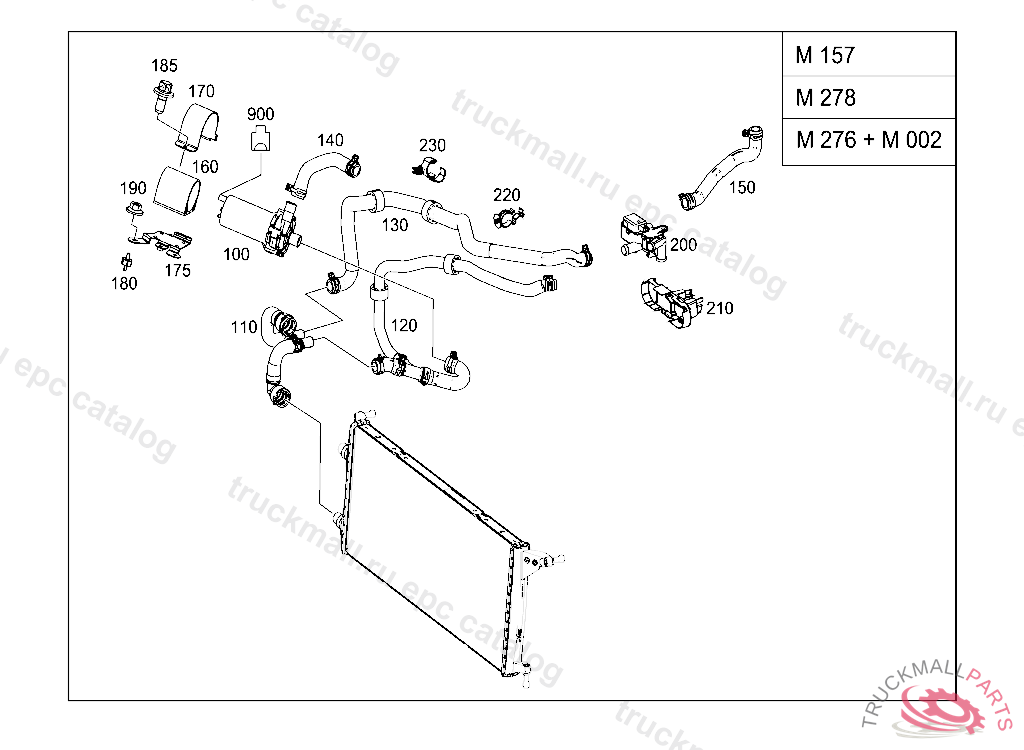

Поз.
Артикул
Описание
100
COOLANT PUMP
110
COOLANT HOSE LOW-TEMPERATURE RADIATOR AT ENGINE
120
COOLANT HOSE FILLING HOSE AT WATER PUMP, A 20130109
130
COOLANT HOSE FILLING HOSE AT EXPANSION RESERVOIR AND WATER PUMP
140
COOLANT HOSE PUMP TO RADIATOR
160
GROMMET
170
BRACKET TO PUMP
175
BRACKET
180
BUFFER TO COMPRESSOR
185
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
190
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
200
CHANGE-OVER VALVE LOW TEMPERATURE PUMP
210
BRACKET REGULATING VALVE
220
CLAMP FASTENING COOLANT HOSE
230
LINE FASTENER
900
CONNECTOR HOUSING RECIRCULATING PUMP CHARGE AIR INTER- COOLING M44
