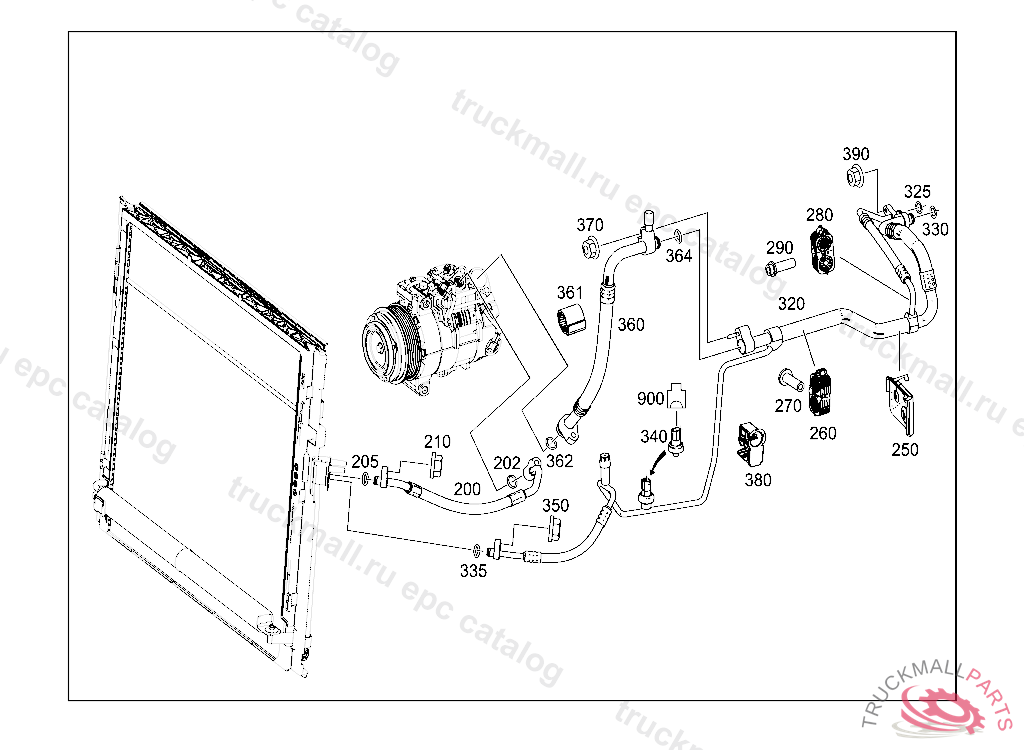

Поз.
Артикул
Описание
200
REFRIGERANT LINE
202
SEALING RING PIPE LINE TO REFRIGERANT COMPRESSOR 10.6X2 MM
205
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
210
NUT , Replaced By: N913023006001
250
SEALING FRAME
250
SEALING FRAME
260
LINE FASTENER
260
LINE FASTENER HIGH PRESSURE LINE TO BRACKET
270
THREADED BUSHING CABLE HOLDER
280
CLAMP REFRIGERANT LINE TO BODY 10 MM + 16-19 MM BLACK
290
THREADED BUSHING CABLE HOLDER
320
REFRIGERANT LINE
320
REFRIGERANT LINE
320
REFRIGERANT LINE
320
REFRIGERANT LINE
325
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
330
SEALING RING SUCTION LINE 13.7X2.5 MM
335
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
340
PRESSURE SENSOR
350
NUT , Replaced By: N913023006001
360
REFRIGERANT LINE
362
SEALING RING SUCTION LINE 23.8X2.4 MM
364
O-RING SEPARATION POINT 16.7X2.5
370
NUT , Replaced By: N913023006001
380
LINE FASTENER HIGH PRESSURE LINE TO BRACKET
390
NUT , Replaced By: N913023006001
900
CONNECTOR HOUSING COOLANT PRESSURE/TEMPERATURE SENSOR 3-PIN MQS,B12
999
SPACER RING REFRIGERANT LINE, L 00088820121231 M 00088820121231 A 17053420121205
