Mercedes A2119970146 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

SLK 280 / SLK 300 171.454

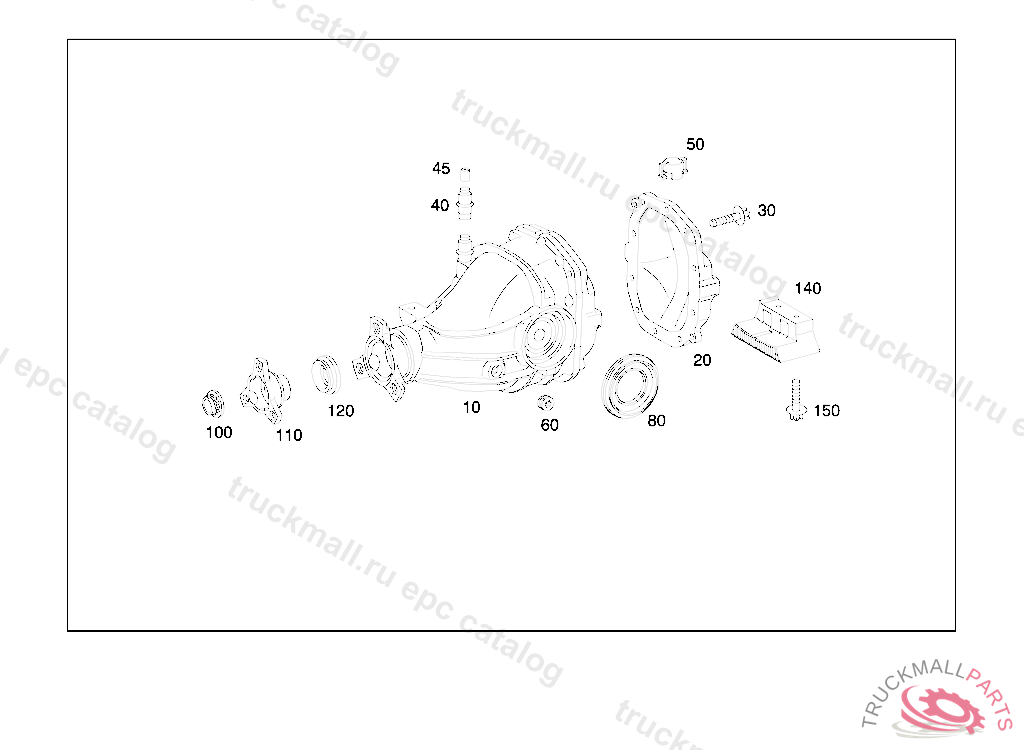

35 REAR AXLE - 015 REAR AXLE HOUSING WITH DIFFERENTIAL

Поз.
Артикул
Описание
10
A1713500414
HOUSING REAR AXLE CENTER ASSEMBLY W/O FLANGE 1:3.27, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
A2033510008
COVER END COVER
30
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
40
A2303500590
BREATHER
40
A1663510165
VENTILATION NECK , Replaced By: A1663510265
45
A2213500090
BREATHER
45
A2303510268
CAP BREATHER
60
A3529970032
SCREW PLUG BELL HOUSING
80
A2119970146
SEAL RING INTERIOR FLANGE, IMPORTANT: SEALING RING AND PROTECTIVE RING MUST ALWAYS BE EXCHANGED TOGETHER!
100
A2213530272
NUT
110
A2113500245
FLANGE PROPELLER SHAFT 100 MM, Replaced By: A2123500045, +001A0259970047
120
A0259970047
SEAL RING DRIVE PINION
