Mercedes N006799006003 - Предохранительная шайба

SLK 280 / SLK 300 171.454

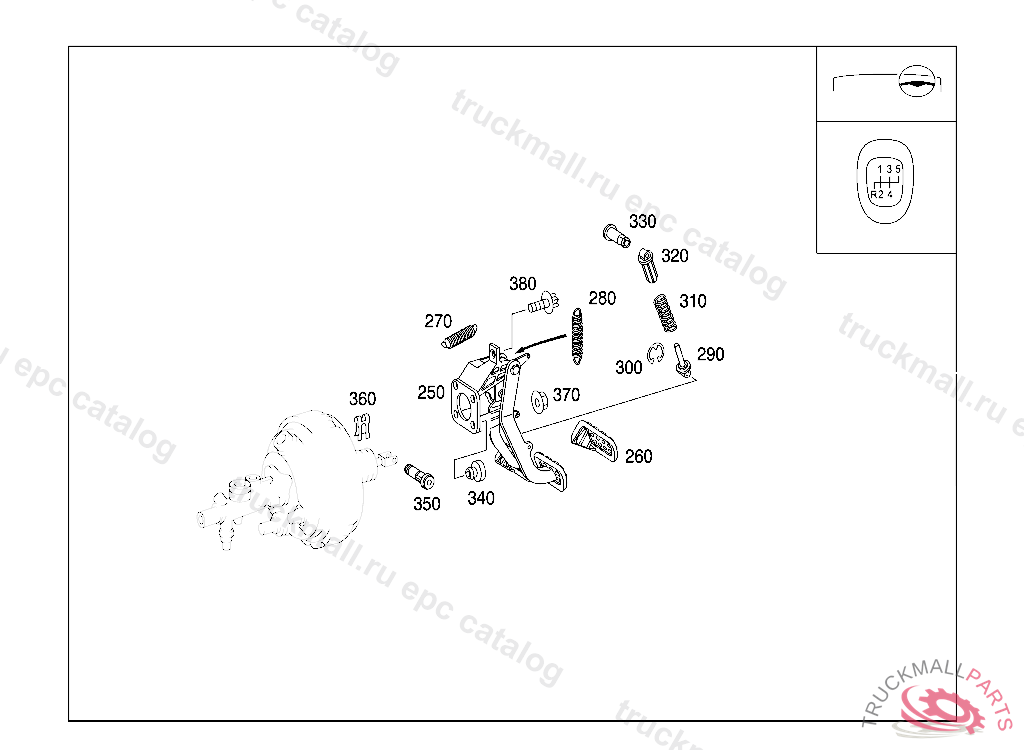

29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING IL. 2

Поз.
Артикул
Описание
250
A1712902201
PEDAL
260
A1702900082
PAD BRAKE PEDAL
270
A2112910192
SPRING CLUTCH PEDAL
280
A2209930010
SPRING BRAKE PEDAL RELEASE SPRING
280
A0009933411
SPRING TO BRAKE PEDAL
290
A2032910033
ROD
300
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
310
A2112910492
SPRING OVER-CENTER ACTING SPRING, A 63400920040210 A 94048520060831
310
A0009939820
PUSH SPRING BETWEEN THRUST ROD AND SPRING CUP, F 12954920060501
310
A2042910192
SPRING OVER-CENTER ACTING SPRING, A 94048620060831 E 02000020070101
320
A2032910091
SPRING RETAINER OVER-CENTER ACTING SPRING
330
A1682920074
PIN SPRING RETAINER
340
A2012910186
STOP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. A 050826 F 003713
350
A2032920174
PIN BRAKE PEDAL TO BRAKE BOOSTER
360
N912002008003
LOCK PULL TO FASTENER
370
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
380
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
