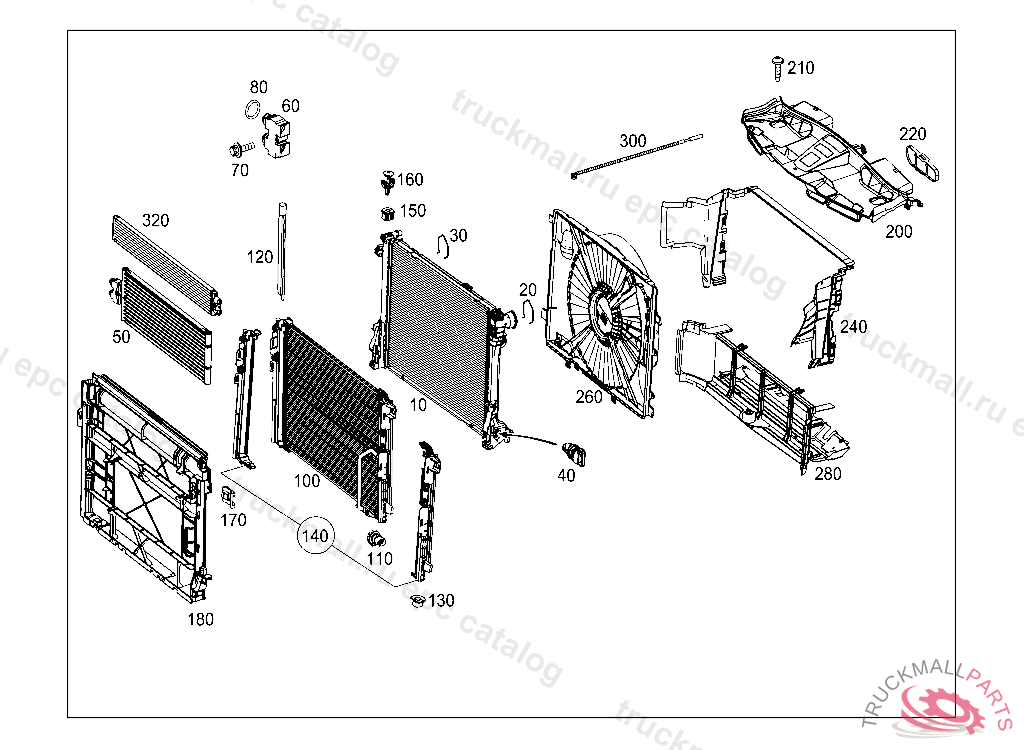

Поз.
Артикул
Описание
10
WATER COOLER
10
WATER COOLER
10
WATER COOLER , Replaced By: A0995006203
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
30
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
40
DRAIN PLUG DRAIN PLUG
100
CAPACITOR
120
REFRIGERANT DRIER F AC
130
RADIATOR MOUNT RADIATOR BOTTOM
140
BRACKET LEFT AND RIGHT CONDENSER
150
BEARING TOP LEFT AND RIGHT, J 06236120041209
160
CLIP RADIATOR TO SUPPORT
200
COLD AIR INDUCTION TOP
210
HEXALOBULAR BOLT BUMPER COVERING M6X20
220
COVER ON FAN SHROUD
240
AIR DUCT TOP
260
BLOWER
260
BLOWER600W, J 14335220130123 N 04494420130123, Replaced By: A2049061403
260
BLOWER600W, Replaced By: A2049066802
280
AIR DUCT BOTTOM
300
HOSE ASSEMBLY FROM VACUUM BOX TO INTAKE MANIFOLD
300
HOSE ASSEMBLY FROM VACUUM BOX TO INTAKE MANIFOLD
