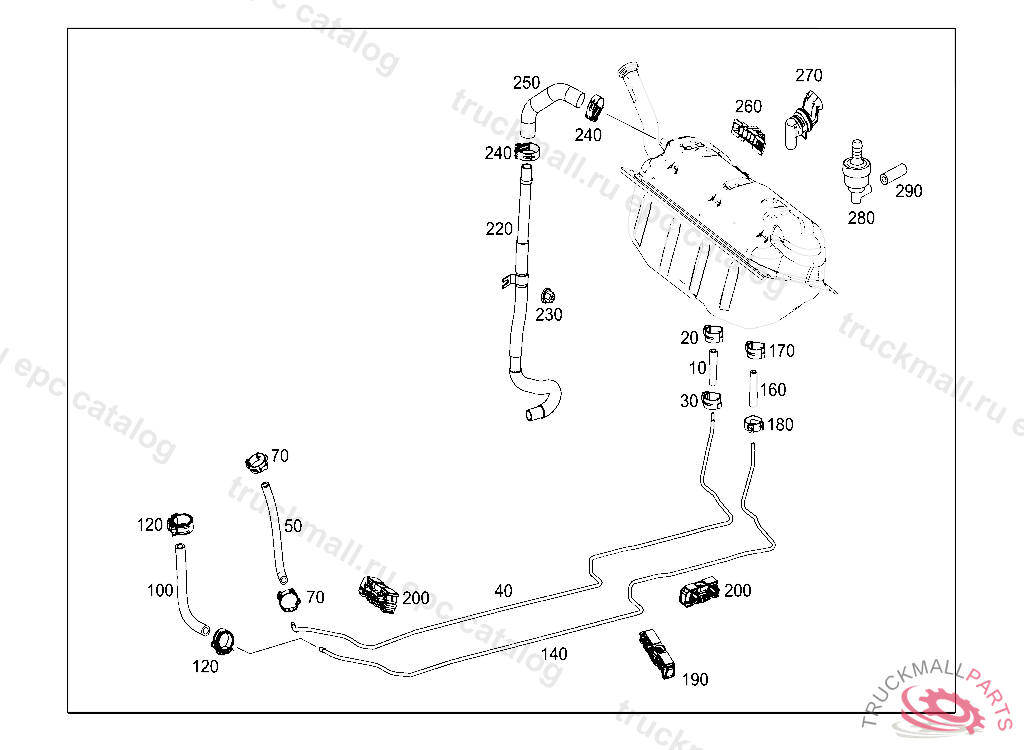

Поз.
Артикул
Описание
10
FUEL HOSE RETURN
20
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
30
HOSE CLAMP HOSE ATTACHMENT
40
FUEL LINE FEED
50
HOSE FEED
70
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
100
HOSE RETURN LINE
120
CLAMP HOSE TO FEEDLINE AND ENGINE
140
FUEL RETURN LINE RETURN
160
FUEL HOSE RETURN
170
HOSE CLAMP HOSE ATTACHMENT
180
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
190
LINE HOLDER FASTENING, BRAKE AND FUEL LINE TO VEHICLE FLOOR
200
LINE HOLDER FUEL LINE MOUNTING
220
VENT LINE FROM FILLER PIPE TO FUEL TANK
220
VENT LINE FROM FILLER PIPE TO FUEL TANK, Replaced By: A1724760901
230
NUT COVERING TO CAB FIRE WALL
240
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
250
HOSE BREATHER LINE TO FUEL TANK
260
BRACKET REGENERATION VALVE
270
BREATHER , 020 073526 023 090168 026,028 045001 030 022218 033 038910 120 104560 123,125 070948 126 040619 130,132 089299
280
VALVE FEED AND RETURN LINES, BREATHING
290
FUEL HOSE FROM VALVE TO BREATHER LINE
