Поз.
Артикул
Описание

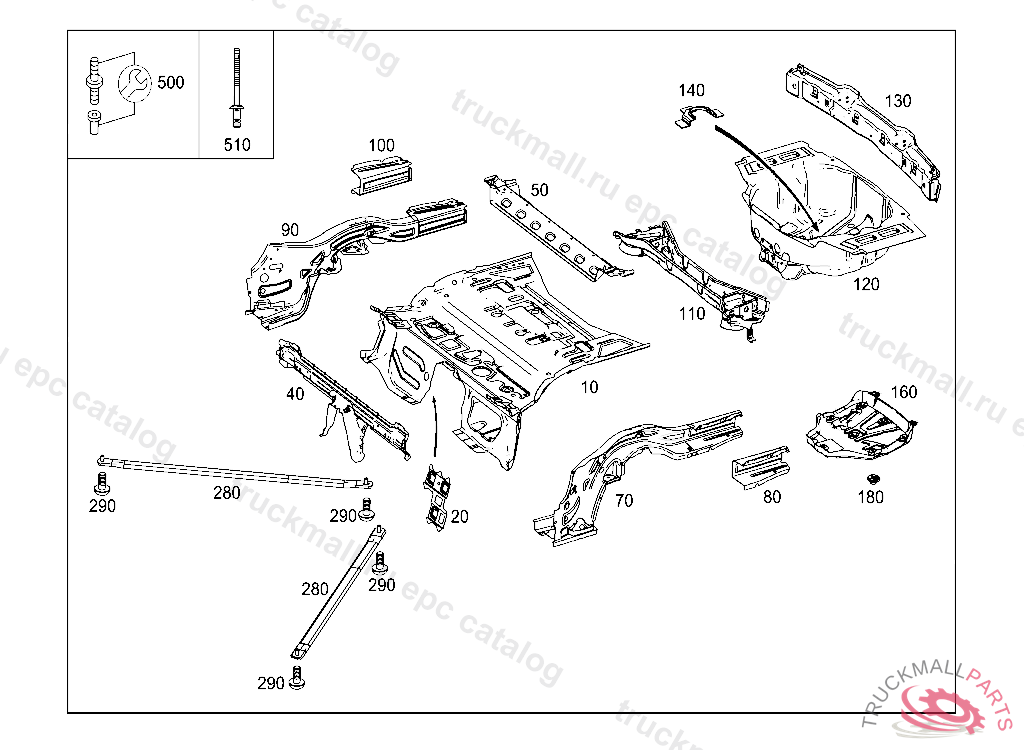

10
FLOOR OVER REAR AXLE ABOVE REAR AXLE
20
BRACKET ACTIVATED CHARCOAL FILTER, P 538628 R 000001
40
CROSS MEMBER BOTTOM FRONT
50
BEAM TANK COVER
70
LONGITUDINAL MEMBER LEFT
80
SIDE MEMBER REAR LEFT
90
LONGITUDINAL MEMBER RIGHT
100
SIDE MEMBER REAR RIGHT
110
REAR AXLE CROSS MEMBER ABOVE REAR AXLE
120
SPARE WHEEL RECESS , F 19784220080415 F 22572520090910
120
SPARE WHEEL RECESS , F 22572620090910
130
CROSS MEMBER REAR
140
CONSOLE
160
COVER SPARE WHEEL WELL
180
PLASTIC NUT. NUT
280
STRUT REAR LEFT AND RIGHT
290
FILLISTER HEAD SCREW STRUT TO ENGINE CROSS MEMBER M10X20
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
