Поз.
Артикул
Описание

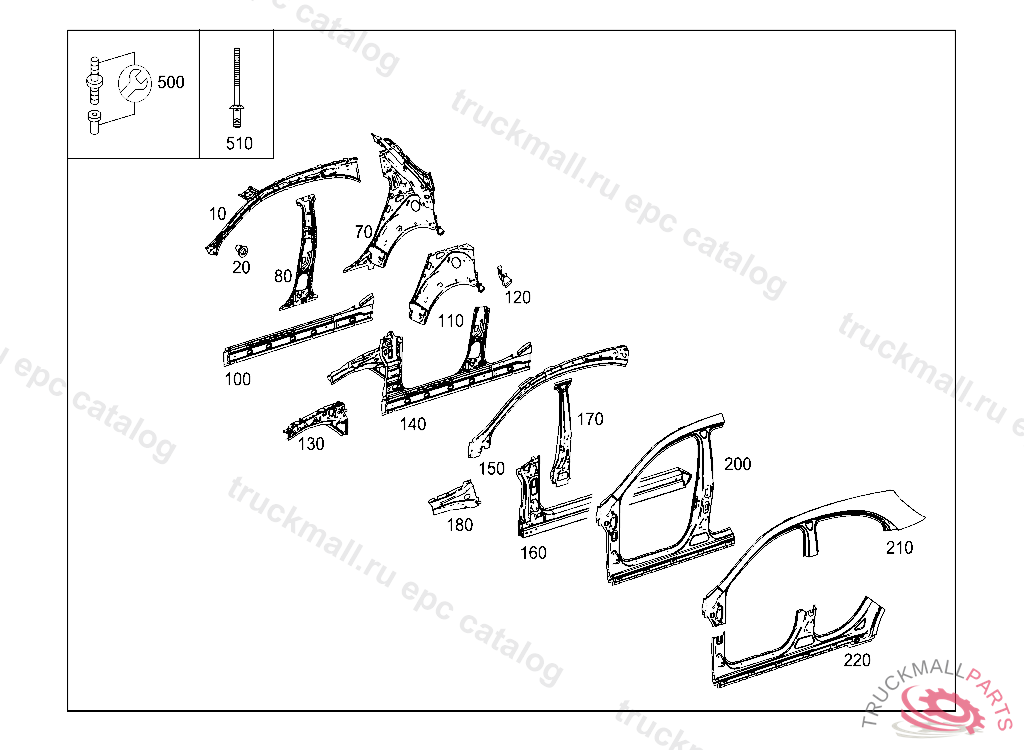

10
A-PILLAR INSIDE LEFT
10
A-PILLAR INSIDE RIGHT
20
RIVETED NUT A-PILLAR, LEFT AND RIGHT
70
C-PILLAR LEFT
70
C-PILLAR INSIDE RIGHT
80
B-PILLAR INSIDE LEFT
80
B-PILLAR INSIDE RIGHT
100
LONGITUDINAL MEMBER BOTTOM INSIDE RIGHT
100
LONGITUDINAL MEMBER BOTTOM INSIDE LEFT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2466301500
100
LONGITUDINAL MEMBER BOTTOM INSIDE RIGHT, Replaced By: A2466301600
100
LONGITUDINAL MEMBER INSIDE LEFT
110
WHEEL HOUSE REAR RIGHT
110
WHEEL HOUSE REAR LEFT
120
WHEELHOUSE OUTER LEFT LOCKING LUG
120
WHEELHOUSE OUTER RIGHT LOCKING LUG
130
LONGITUDINAL MEMBER OUTSIDE LEFT
130
LONGITUDINAL MEMBER OUTSIDE RIGHT
140
SIDEWALL INSIDE LEFT
140
SIDEWALL INSIDE RIGHT
150
ROOF FRAME TOP RIGHT
150
ROOF FRAME TOP LEFT
160
A-PILLAR OUTSIDE RIGHT
160
A-PILLAR OUTSIDE LEFT
170
B-PILLAR RIGHT
170
B-PILLAR LEFT
180
REINFORCEMENT LONGITUDINAL MEMBER, TOP, RIGHT
180
STIFFENING LONGITUDINAL MEMBER, TOP, LEFT
200
PANELING A-PILLAR RIGHT
200
PANELING A-PILLAR LEFT
210
OUTER ROOF FRAME RIGHT
210
OUTER ROOF FRAME LEFT
220
PANELING LEFT
220
PANELING RIGHT
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
