Поз.
Артикул
Описание

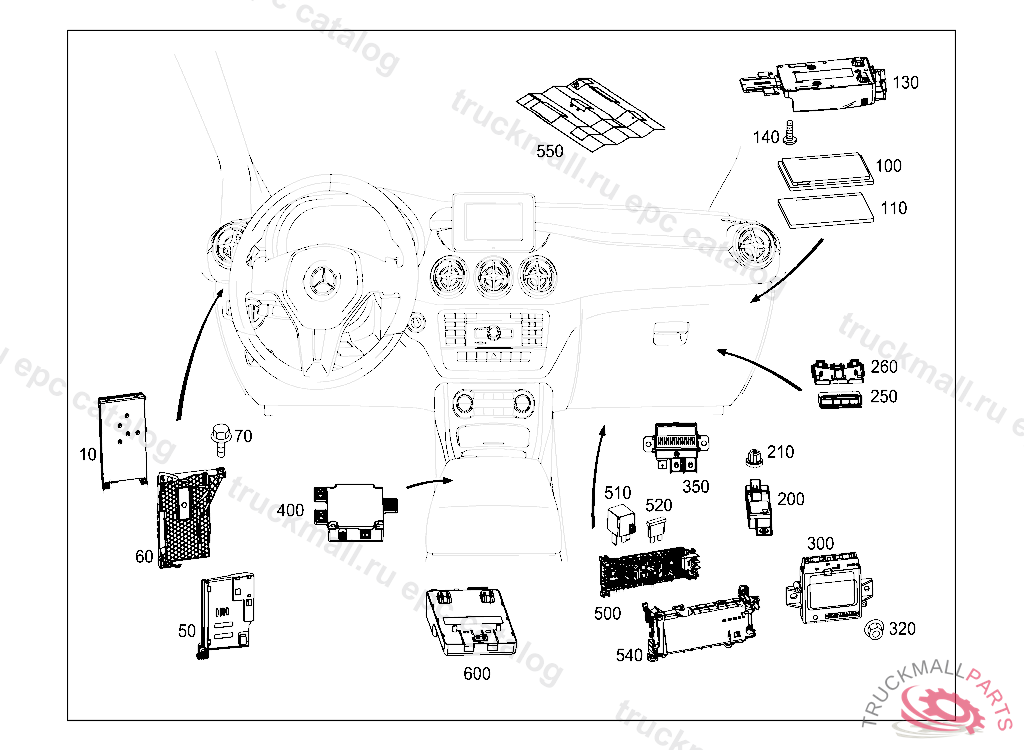

10
CONTROL UNIT SIGNAL ACQUISITION AND ACTUATION MODULE, FRONT N10, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
10
CONTROL UNIT SIGNAL ACQUISITION AND ACTUATION MODULE, FRONT N10, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
50
BRACKET SIGNAL ACQUISITION AND ACTUATION MODULE, FRONT
60
BRACKET CONTROL UNIT
70
HEXALOBULAR BOLT. SCREW
100
CONTROL UNIT NAVIGATION A2/30, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
100
CONTROL UNIT NAVIGATION PROCESSOR, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
100
CONTROL UNIT NAVIGATION A2/30
100
CONTROL UNIT , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
100
CONTROL UNIT NAVIGATION A2/30, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 12795820130603 V 00005920130619 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A1669003009
100
CONTROL UNIT NAVIGATION A2/30, Replaced By: A1669009008
100
CONTROL UNIT NAVIGATION A2/30, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A1669009508
100
CONTROL UNIT NAVIGATION A2/30, Replaced By: A1669009708
100
CONTROL UNIT NAVIGATION A2/30, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A1669008708
100
CONTROL UNIT NAVIGATION A2/30, Replaced By: A1669002409
100
CONTROL UNIT NAVIGATION A2/30, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
110
RECHARGEABLE BATTERY NAVIGATION PROCESSOR
130
CONTACT PLATE CONTROL UNIT FIXTURE
140
BOLT CONTACT PLATE FASTENER M5X10
210
NUT CONTROL UNIT FIXTURE
250
CONTROL UNIT TOLL RECORDING
260
BRACKET TOLL RECORDING CONTROL UNIT
320
NUT BRACKET TO BODY SHELL M6
350
RELAY BACKUP BATTERY
400
CONTROL UNIT MEDIA INTERFACE N125/1, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
500
RELAY UNIT FRONT FUSE AND RELAY BOX
510
CONTACTOR FUEL PUMP
510
RELAY PLUG POSITION C
510
RELAY PLUG POSITION C
510
RELAY SLOT L
510
RELAY SLOT R
510
RELAY SLOT R
510
RELAY SLOT Q
510
RELAY HEADLAMP WIPER/WASHER
510
RELAY SLOT K
510
RELAY SLOT D
510
BATTERY CUT-OFF RELAY PLUG POSITION F
510
RELAY SLOT L
510
RELAY SLOT Q
520
FUSE LINK MINI F-5A-S
520
FUSE LINK MINI F-7.5A-S
520
FUSE LINKE-40A-S
520
FUSE LINKE-50A-S
520
FUSE LINK MINI 10A
520
FUSE LINK30 A
520
FUSE LINKC-5A-S
520
FUSE LINK YELLOW 20A
520
FUSE LINKC-15A-S
520
FUSE LINKC-7,5A-S
520
FUSE LINKC-10A-S
520
FUSE LINKC-25A-S
540
BRACKET FRONT FUSE AND RELAY BOX
600
CONTROL UNIT PREINSTALLATION, PORTABLE CTEL/PHONE
