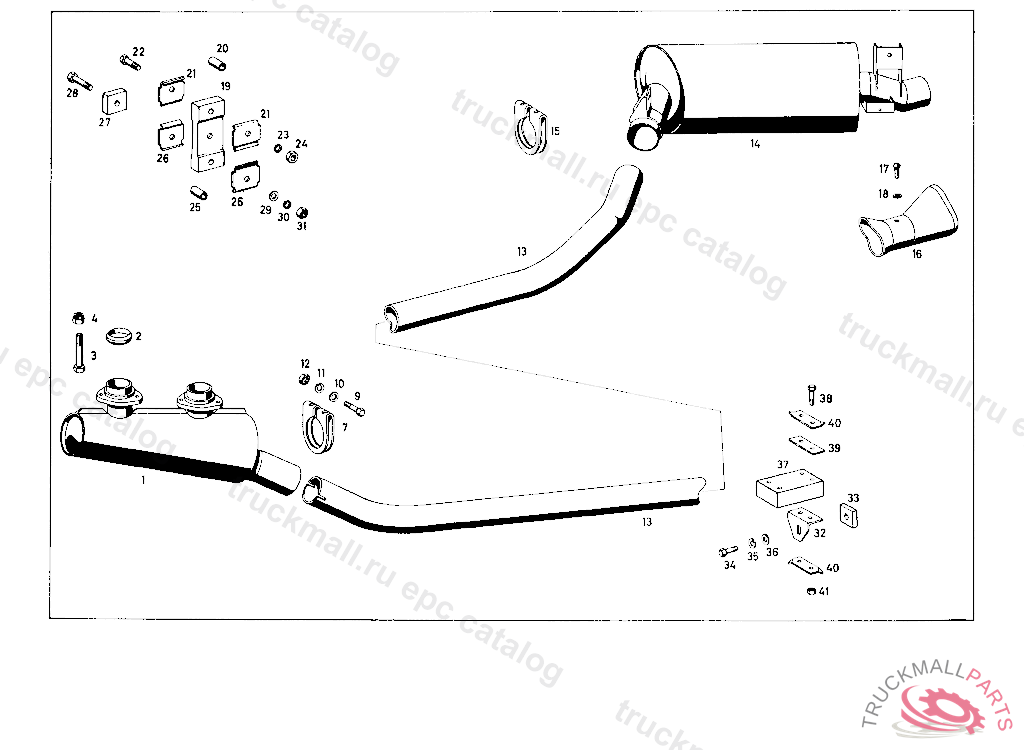

Поз.
Артикул
Описание
1
PRE-MUFFLER, FRONT
2
DICHTRING. SEAL RING FRONT PRE-MUFFLER TO EXHAUST MANIFOLD
7
ROHRSCHELLE FUR 66 O. PIPE CLAMP CENTRAL EXHAUST PIPE TO MAIN MUFFLER
13
EXHAUST PIPE, CENTRAL
14
MAIN MUFFLER
15
ROHRSCHELLE FUR 66 O. PIPE CLAMP CENTRAL EXHAUST PIPE TO MAIN MUFFLER
16
TAIL PIPE
19
RUBBER DAMPING PAD
20
SPACER TUBE FRONT EXHAUST PIPE,B 884219
21
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
25
SPACER TUBE FRONT EXHAUST PIPE,B 884219
26
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
27
INSULATING WASHER. INSULATION , Replaced By: A3094900037
32
BEFESTIGUNGSWINKEL AM HALTER-RAHMEN
33
INSULATING WASHER. INSULATION , Replaced By: A3094900037
37
DAMPING PAD
39
BASE PLATE EXHAUST MUFFLER TO SUBSTRUCTURE, UP TO CHASSIS 13021697
40
LOCK
999
MAIN MUFFLER , Replaced By: A1984910199
