Поз.
Артикул
Описание

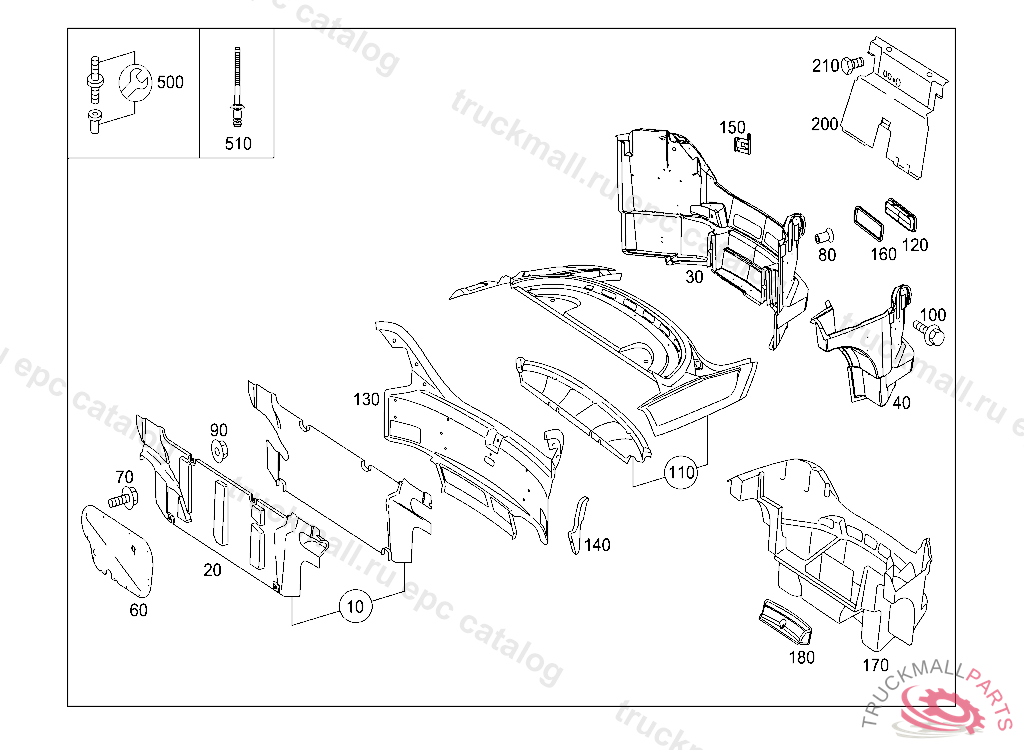

10
REAR PANEL , 9F98QFT199A0037 BLACK
60
COVER FUEL TANK
70
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
90
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
100
SCREW BRACKET TO SIDE MEMBER M8X20
110
REAR PANEL
120
FLAP BREATHER TO REAR FENDER IN BUMPER AREA
130
PANELLING
140
PANELLING REAR
150
RETAINING CLAMP AIR BAFFLE
160
FULL FACE GASKET AT FLAP
170
REAR ENDLUGGAGE-CELL-COMPLETE-SOP*
180
WATER DEFLECTOR RAIL AT REAR END
200
REAR PANEL
210
HEXAGON HEAD BOLT WIRING FASTENING 6X12, M 00130820061204
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
