Поз.
Артикул
Описание

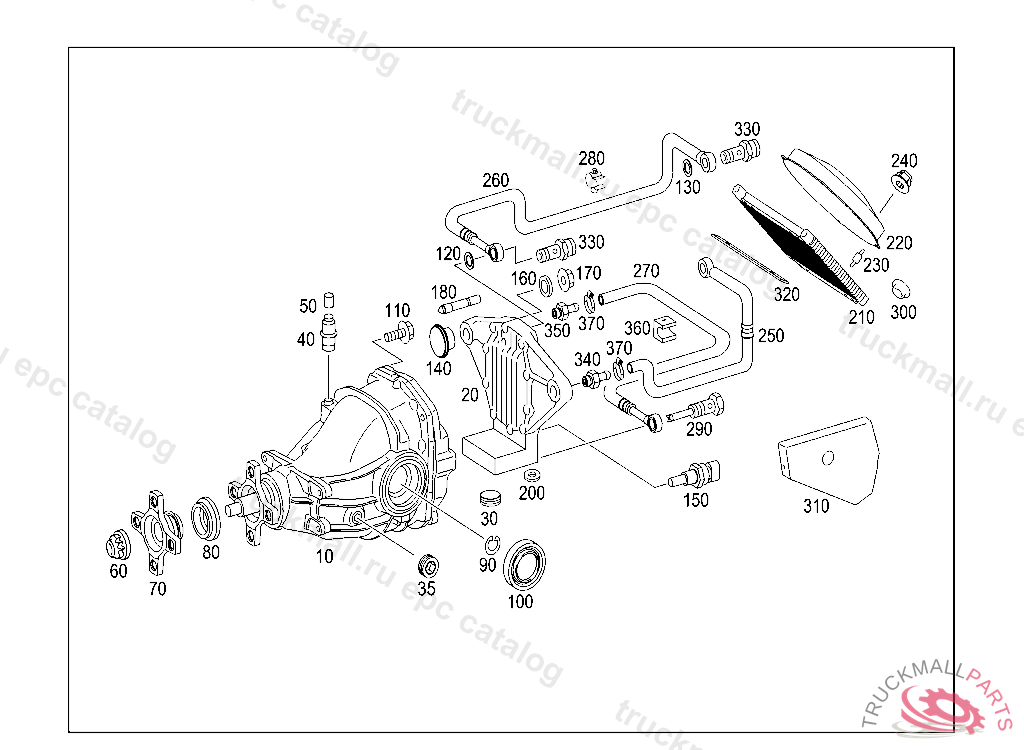

10
DIFFERENTIAL REAR AXLE HOUSING WITH DIFFERENTIAL HAG 215, M 00048420040630 M 00049920041001
20
COVER , M 00048420040630 M 00049920041001
30
BOLT. SCREW OIL DRAIN
35
SCREW PLUG BELL HOUSING
100
SEAL RING LEFT AND RIGHT AXLE SHAFT, IMPORTANT: SEALING RING AND PROTECTIVE RING MUST ALWAYS BE EXCHANGED TOGETHER!
120
WASHER OIL PUMP M12
130
WASHER SRREW PLUG
140
RUBBER MOUNT REAR AXLE HOUSING WITH DIFFERENTIAL
150
SENDER UNIT TEMPERATURE SENSOR FUEL
160
PRESSURE PLATE BEARING TO BRACKET
170
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
180
BOLT REAR AXLE HOUSING WITH DIFFERENTIAL STUD-DIFFERENTIAL-SUPPORT*
210
RADIATOR REAR AXLE HOUSING WITH DIFFERENTIAL
220
FAN RADIATOR
230
RUBBER SPRING FAN COWL FASTENING (METALLGUMMIFEDER)
240
NUT FAN COWL MOUNTING TO RADIATOR M5
250
HOSE FEED TO RADIATOR
260
HOSE RETURN LINE TO RADIATOR
270
HOSE ON EXPANSION RESERVOIR
280
BRACKET FEED LINE TO RADIATOR
290
HOLLOW SCREW HOSE ATTACHMENT
300
BUSHING DAMPER FASTENING LEFT AND RIGHT
310
AIR BAFFLE RADIATOR,REAR
320
INSULATION OIL COOLING
330
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
340
FITTING CONNECTION M12X1,5
350
FITTING CONNECTION M14X1,5
360
BRACKET FEED LINE TO RADIATOR
370
HOSE CLAMP LINE MOUNTING
