Mercedes A1996400202 - Задняя панель

SLR MCLAREN 199.976

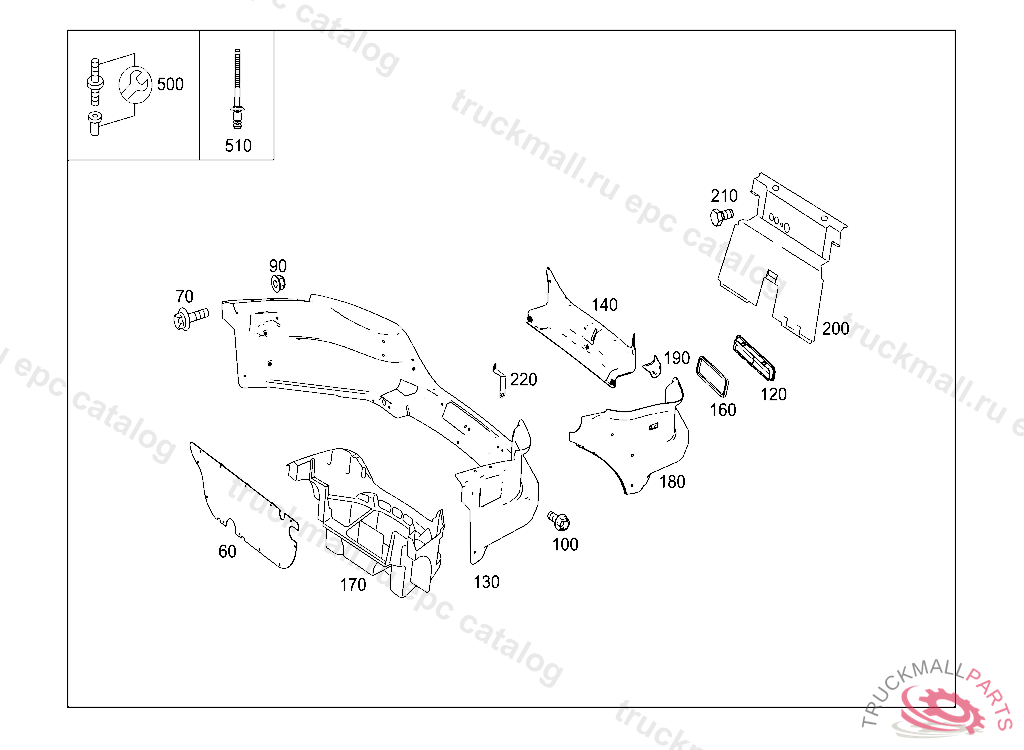

64 REAR END - 015 REAR END

Поз.
Артикул
Описание
60
A1994700047
COVER
70
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
90
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
100
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
120
A2118300042
FLAP BREATHER TO REAR FENDER IN BUMPER AREA
130
A1996470301
PANELING
140
A1996470201
PANELING REAR
160
A0169976545
FULL FACE GASKET AT FLAP
170
A1998100280
LUGGAGE RACK
180
A1996931817
COVER LEFT
180
A1996931717
COVER RIGHT
190
A1996860145
ORNAMENTAL MOLDING LEFT
190
A1996860045
ORNAMENTAL MOLDING RIGHT
200
A1996400202
REAR PANEL
210
N000000002701
HEXAGON HEAD BOLT WIRING FASTENING 6X12, M 00130820061204
220
A1996020214
BRACKET REAR RIGHT INSIDE
220
A1996020314
BRACKET REAR LEFT INSIDE
500
A0009901210
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
A0009917632
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
