Поз.
Артикул
Описание

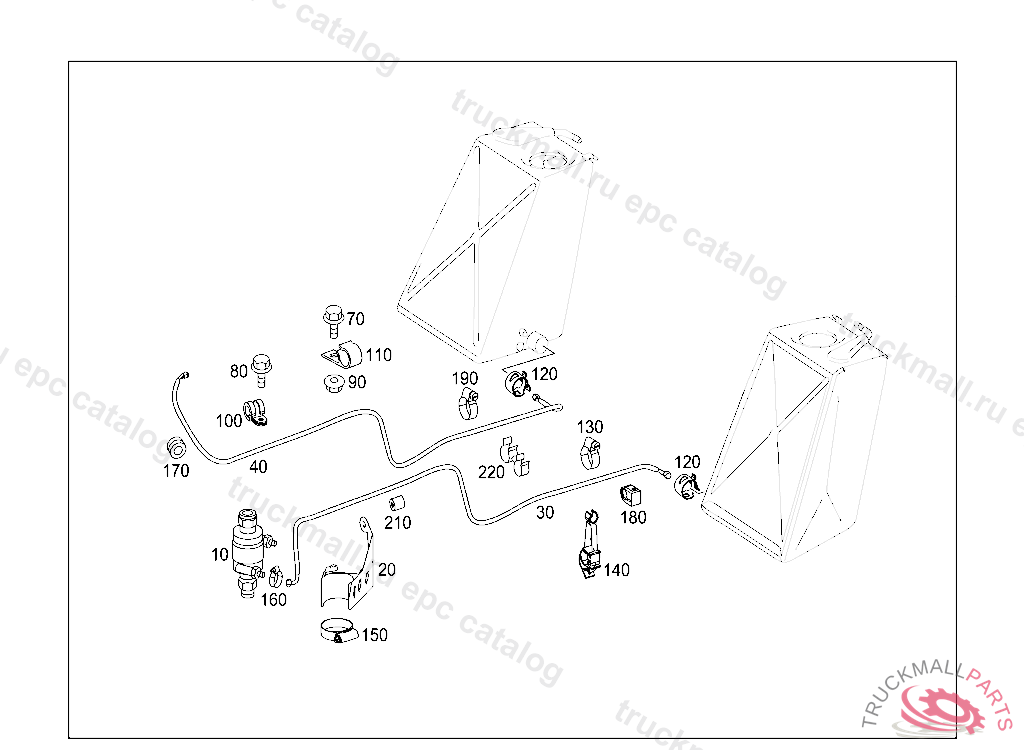

10
COOLER (FUEL COOLER),A 144703MOTOR 104.990
20
BRACKET FUEL COOLER
30
LINE FUEL FEED
40
LINE FUEL RETURN, NO LONGER AVAILABLE
70
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
80
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
90
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
100
MOUNTING CLAMP OIL FILLER TO ENGINE
110
CLAMP FUEL LINE MOUNTING
120
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
130
CLAMP FUEL LINE MOUNTING
140
SPACER FUEL LINE MOUNTING
150
CLAMP RADIATOR MOUNTING
160
CLAMP RADIATOR MOUNTING
170
CABLE GROMMET CLAMP
180
BRACKET
190
CLAMP BRACKET
210
PAD FUEL LINE
220
SPACER FASTENING FUEL LINES TO LONGITUDINAL MEMBER
220
SPACER TO HOSE
