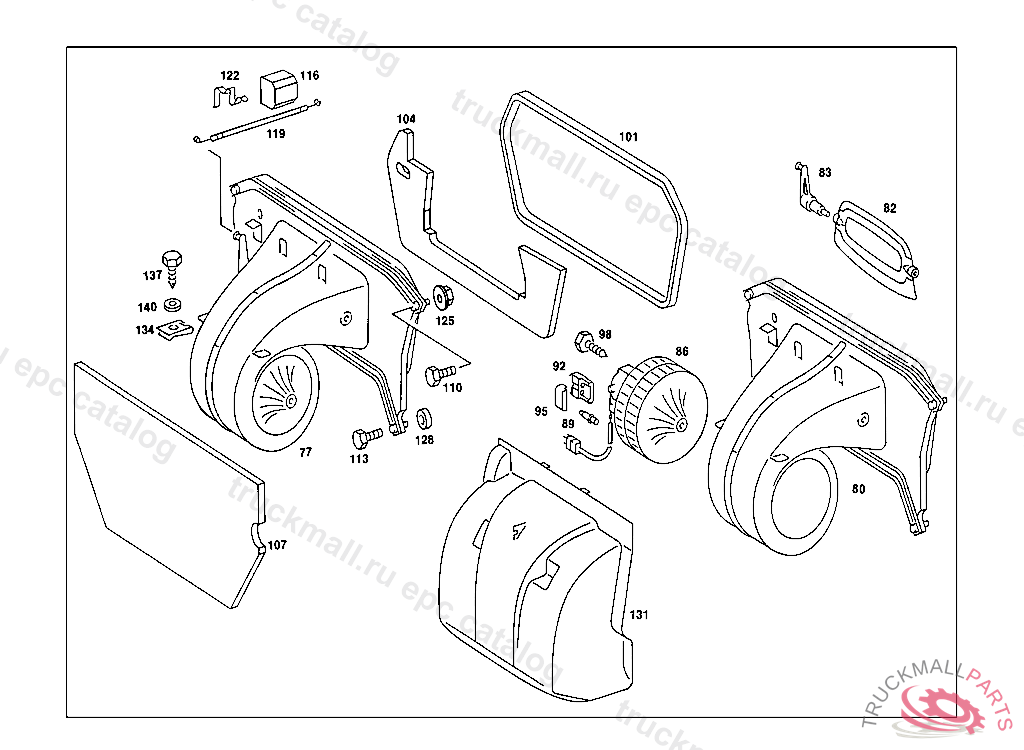

Поз.
Артикул
Описание
77
BLOWER HEATING
77
BLOWER HEATING
80
HOUSING BLOWER
82
FLAP BLOWER
83
LEVER BLOWER
86
ELECTRIC MOTOR
89
ROUND PIN BUSHING4 MM2
92
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
95
CAP , Replaced By: A0125450428, +001A0125450528
95
COVERTO 008 545 08 28,008 545 09 28
98
SHEET METAL SCREW BRACKET MOUNTING
101
SEAL AT CENTRAL INSIDE PART BELOW WINDSHIELD
110
SCREW BLOWER CASE
113
SCREW BLOWER CASE
116
SEAL BETWEEN HEATER CASE AND BLOWER
119
WIRE CABLE BLOWER
122
CLAMP WIRE CABLE TO BLOWER HOUSING
125
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
125
NUT , Replaced By: N913023006001
125
NUT , Replaced By: N910112006001
128
SEAL BLOWER TO CENTRAL PART BELOW WINDSHIELD,INSIDE
131
COVERING BLOWER
134
LOCK , FROM CHASSIS 107.022 009153 107.025 000696 107.026 002047 107.042 009248 107.045 000771 107.046 003309
137
SHEET METAL SCREW
140
WASHER BOOT TO CAB FLOOR
140
WASHER , Replaced By: N000433005304
999
HEAT EXCHANGER , Replaced By: A0028355401
999
HEATER UNIT , NOT USED
