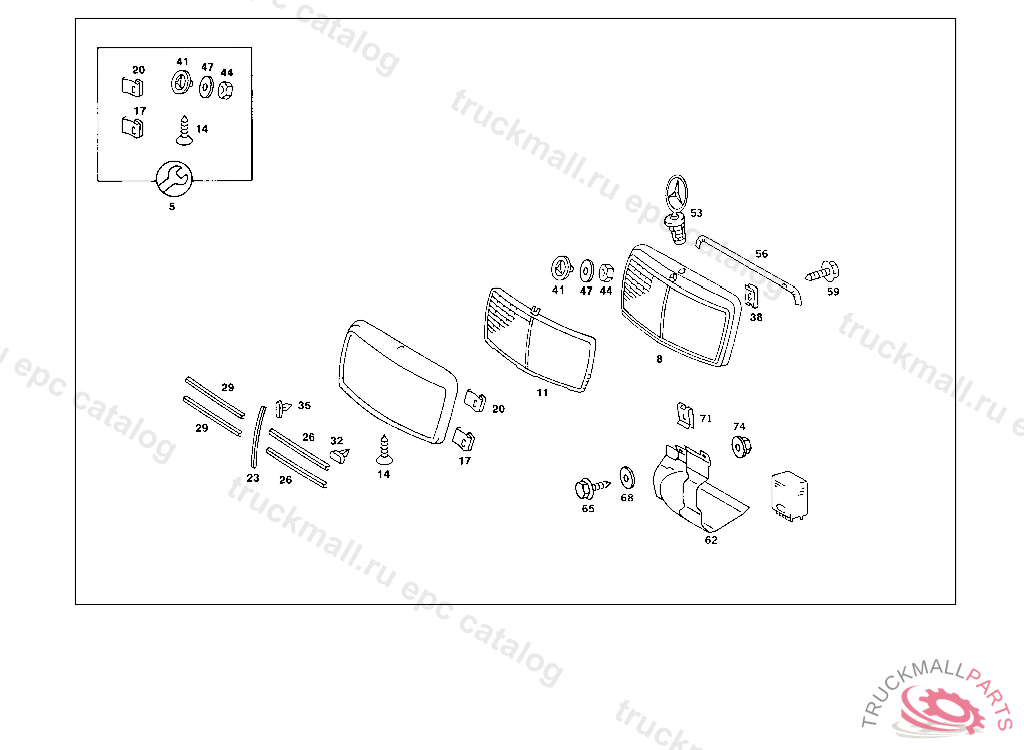

Поз.
Артикул
Описание
5
REPAIR KIT RADIATOR GRILLE SHELL MOUNTING MATERIAL
8
RADIATOR GRILLE SHELL LESS MERCEDES STAR
11
GRILLE RADIATOR GRILLE SHELL
14
SCREW GRILLE TO RADIATOR GRILLE SHELL,BOTTOM
17
LOCK RUBBER BUFFER AND GRILLE TO RADIATOR GRILLE SHELL,LATERAL BOTTOM, 023 008462 033 008603 123 004816 130 007640
20
LOCK GRILLE TO RADIATOR GRILLE SHELL,TOP LATERAL
23
GARNISH MOULDING ALONGSIDE
26
GARNISH MOULDING TRANSVERSE, LEFT
29
GARNISH MOULDING TRANSVERSE, RIGHT
32
CLIP GARNISH MOULDING TO RADIATOR GRILL
35
CLIP GARNISH MOULDING TO RADIATOR GRILL
38
LOCK RADIATOR GRILLE SHELL TO ENGINE HOOD, 023 146000 033 029205 123 133752 130 152177
41
MERCEDES BADGE
44
NUT TACHOGRAPH TO BRACKET
47
WASHER , Replaced By: N009021005205
47
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
53
MERCEDES STAR , Replaced By: A1248800086
53
MERCEDES STAR
56
INSERT RADIATOR GRILLE SHELL TO ENGINE HOOD
59
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
62
COVERING , A 456129 F 539197
65
SCREW
68
WASHER , Replaced By: N009021005205
68
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
71
LOCK RADIATOR GRILLE SHELL TO ENGINE HOOD, 023 146000 033 029205 123 133752 130 152177
74
PLASTIC NUT. NUT
