Главная
›
Mercedes
›
CAR
›
190 E 2.3 JAPAN FROM 09/88
›
201.028
›
47 FUEL SYSTEM
›

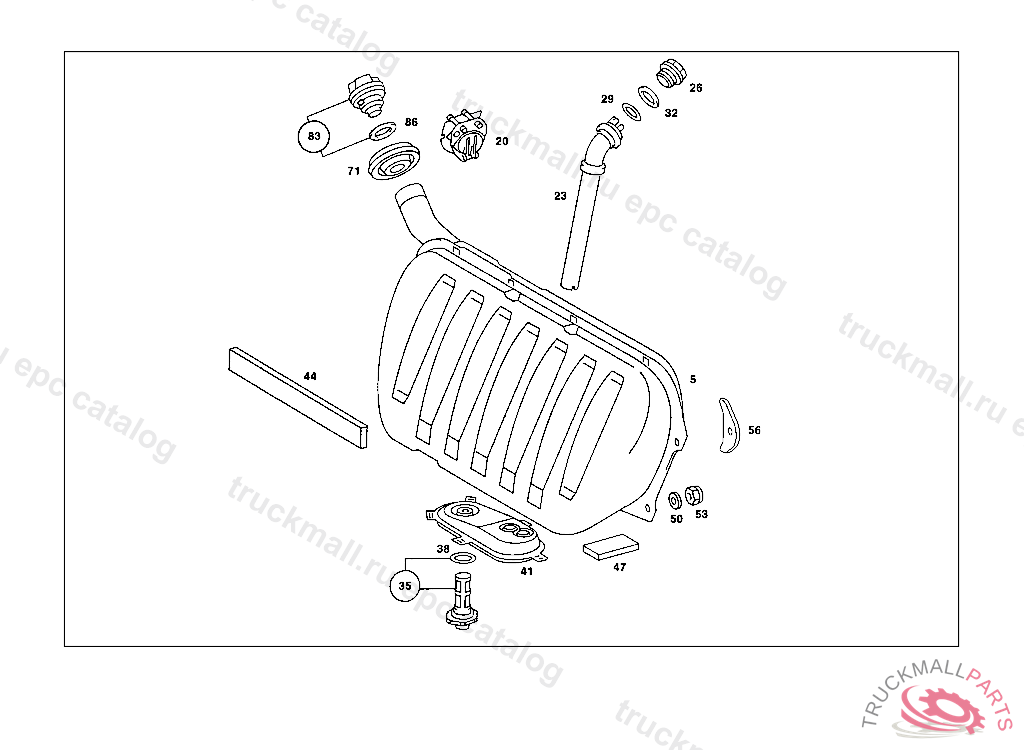

015 FUEL TANK WITH ATTACHMENT PARTS
Mercedes A1154710079 - УПЛОТНЕНИЕ
190 E 2.3 JAPAN FROM 09/88 201.028
47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS
Поз.
Артикул
Описание
5
A2014704301
FUEL TANK70 L.
5
A2014704201
FUEL TANK , A 663706 F 925786
20
A1164700129
FUNNEL , Replaced By: A1694700029
23
A2015420504
GAUGE SENDER UNIT
26
A2014710521
FLANGE
29
A0109978048
SEAL RING
32
A0109978148
SEAL RING
35
A2014700506
FUEL STRAINER PARTS KIT
38
A1109970145
SEAL RING
41
A2014710581
BOOT
44
A2014750220
PAD FUEL TANK FRONT SIDE, ONLY APPLICABLE TO STEEL FUEL TANK
47
A1264750020
PAD FUEL TANK BOTTOM SIDE
50
A1089900340
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
53
N913002008004
NUT SWITCH TO FLOOR PLATE
56
A2014710422
REINFORCEMENT , ONLY APPLICABLE TO 70-LITER FUEL TANK
71
A1239973581
GROMMET FILLER NECK THRU FENDER RECESS
83
A1244700005
FILLER CAP , Replaced By: A0004700730
86
A1154710079
SEAL RING
