190 E 2.3 JAPAN FROM 09/88
201.028

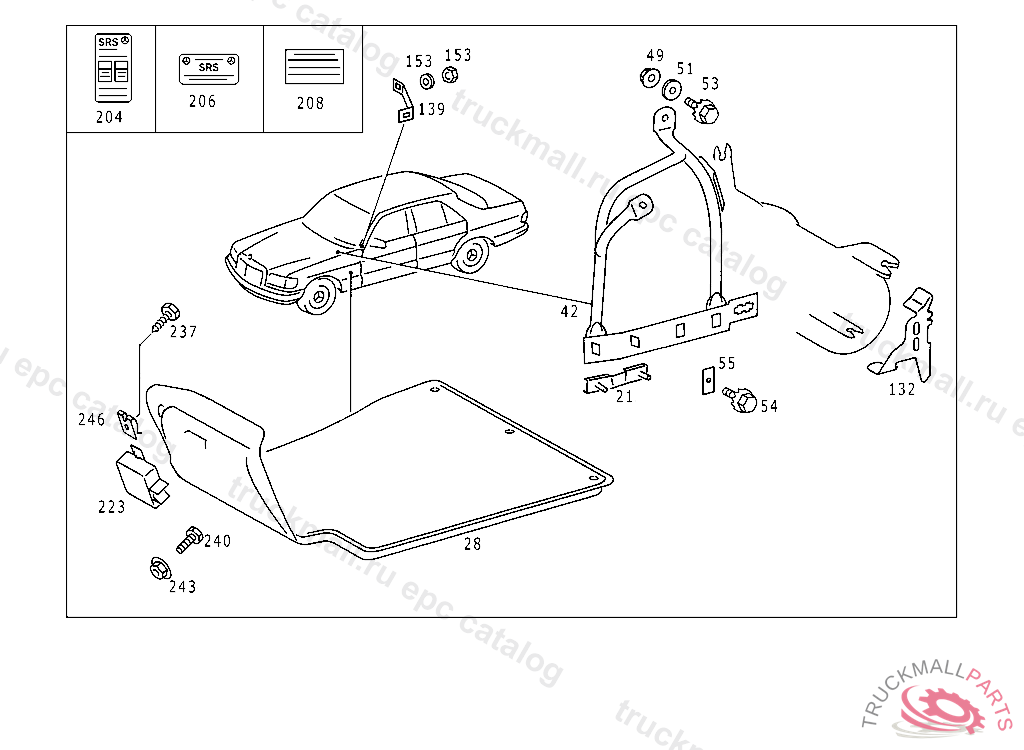

68 COVERING
001 AIRBAG, U.S. VERSION (FOR TYPE 201,ELECTRICAL PARTS,SEE STANDARD MICROFICHE,GROU IL.1

Mercedes N914114008001 - Болт

190 E 2.3 JAPAN FROM 09/88 201.028

68 COVERING - 001 AIRBAG, U.S. VERSION (FOR TYPE 201,ELECTRICAL PARTS,SEE STANDARD MICROFICHE,GROU IL.1

Поз.
Артикул
Описание
21
A1266100936
BRACKET STAY ANCHORAGE POINT TO FLOOR
28
A1076806540
LINING FRONT FLOOR,LEFT VELOURS, NO.7088I NO.5072I NO.8312I NO.8384I NO.8407I NO.6095 AI NO.3107I NO.7124I I NO.6130 BI
28
A1266804940
LINING FRONT FLOOR,LEFT VELOURS, UP TO END OF MODEL YEAR'84 NO.7088 INO.5072 INO.8312 INO.8384 INO.8383 INO.6095 INO.3086 INO.7124 I
28
A2016809640
LINING FRONT FLOOR,LEFT
42
A1266800356
STAY BETWEEN TUNNEL AND STEERING CONSOLE
49
N913017008000
NUT COVERING TO RAIL
51
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
53
N914114008000
SCREW CLAMP TO RADIADOR
54
N914114008001
SCREW TUNNEL,FRONT FLOOR M8X20
55
A1269900144
PLATE TUNNEL,FRONT FLOOR
132
A1266800814
BRACKET AT FRONT PANEL,LATERAL LEFT
139
A1266891514
BRACKET INSTRUMENT PANEL,LEFT
153
N913011006000
NUT WINDOW REGULATOR TO REAR DOOR
204
A2108170520
GUIDE SIGN CENTRAL PILLAR,LEFT
206
A1268173820
GUIDE SIGN FRONT CROSS MEMBER
208
A2028171320
GUIDE SIGN FOOTREST
223
A0008210262
CONDENSER ENERGY RESERVE,9/87
237
N007982004314
SHEET METAL SCREW
240
N000933005058
SCREW IN CASE OF SUBSEQUENT INSTALLATION
243
A1269900351
NUT VOLTAGE TRANSFORMER TO MOUNTING PLATE,9/87
246
A0029941045
LOCK CONDENSER TO INTERIOR PLATE,LEFT OUTSIDE
