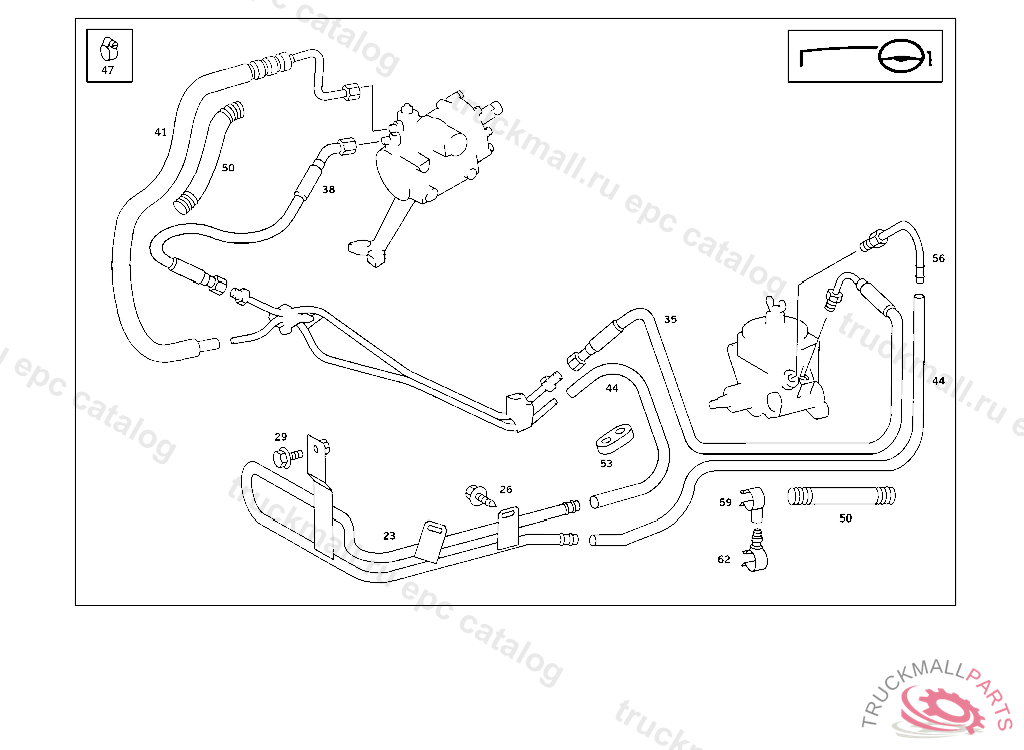

Поз.
Артикул
Описание
23
LINE COOLING PIPE
26
COMBINATION BOLT
29
HEXAGON HEAD BOLT
29
SCREW , Replaced By: N910105006002
35
HOSE FROM PUMP TO DELIVERY LINE
38
HOSE FROM DELIVERY LINE TO STEERING
41
HOSE FROM STEERING TO RETURN LINE
41
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1249976382
41
LINE , Replaced By: A1244601624
44
HOSE RADIATOR, ORDER BY THE METER
47
HOSE CLAMP FUEL LINE TO SENDER UNIT
47
CLAMP , Replaced By: A0059972790
50
HOSE (PROTECTIVE HOSE) 350 MM, ORDER BY THE METER
53
RUBBER RING
56
LINE RETURN
56
LINE , Replaced By: A1244602624
59
CLAMP , Replaced By: A0005465143
62
CLAMP , Replaced By: A0005465143
