Mercedes
›
CAR
›
190 E 2.3-16 USA
›
201.034
›
46 STEERING
›

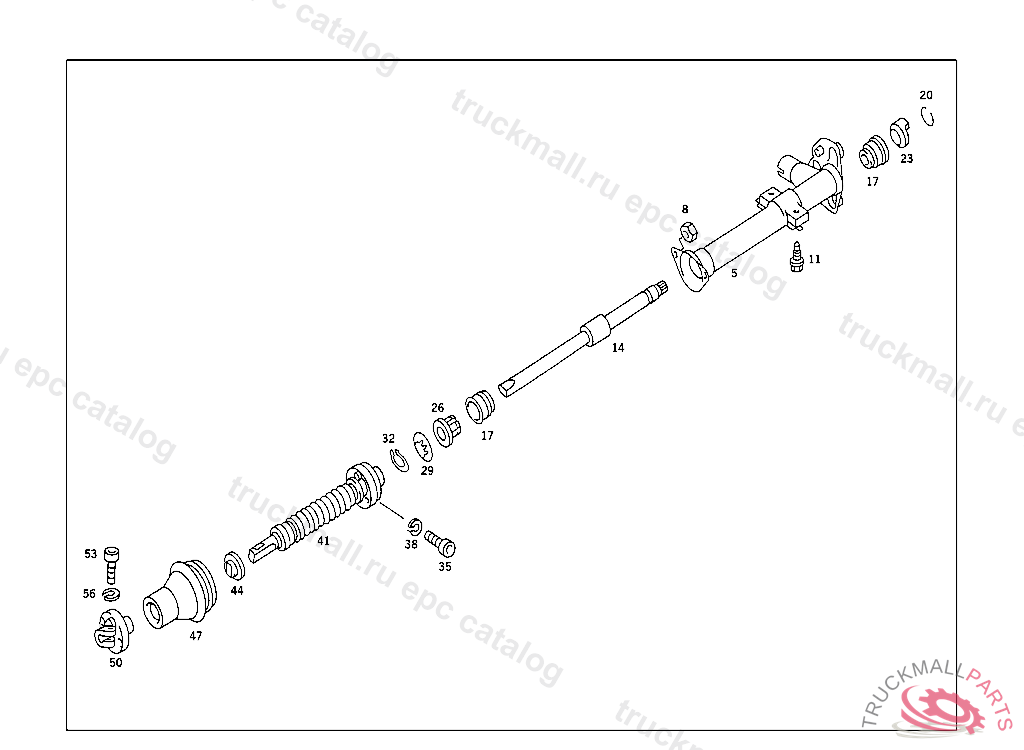

075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT IL. 1
Mercedes N000912008098 - SCHRAUBE DIN 912-M 8
190 E 2.3-16 USA 201.034
46 STEERING - 075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT IL. 1
Поз.
Артикул
Описание
5
A2014604016
STEER. COLUMN JACKET TUBE
8
N304032006008
NUT BATTERY MOUNTING
8
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
11
A2019900204
SCREW STEERING COLUMN JACKET TUBE TO BODY
14
A2014602009
STEERING SHAFT TOP
14
A2014601309
STEERING SHAFT , Replaced By: A2014602009
17
A1269810025
BALL BEARING
20
N912009025100
SNAP RING
23
A1264620051
RING
26
A2014620017
CONICAL SLEEVE
29
A1239930226
DISC SPRING , 023 108180 033 045305 123 087739 130 110887
32
N900055025401
LOCK RING
35
N000912008098
SCREW , Replaced By: N000912008204
38
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
41
A2014601909
STEERING SHAFT BOTTOM
44
A1234620460
SEAL RING
47
A2014621796
BOOT
50
A1234600210
STEERING COUPLING
53
A2029902101
SCREW
53
A1239900720
SCREW , Replaced By: A2029902101
56
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
