Поз.
Артикул
Описание

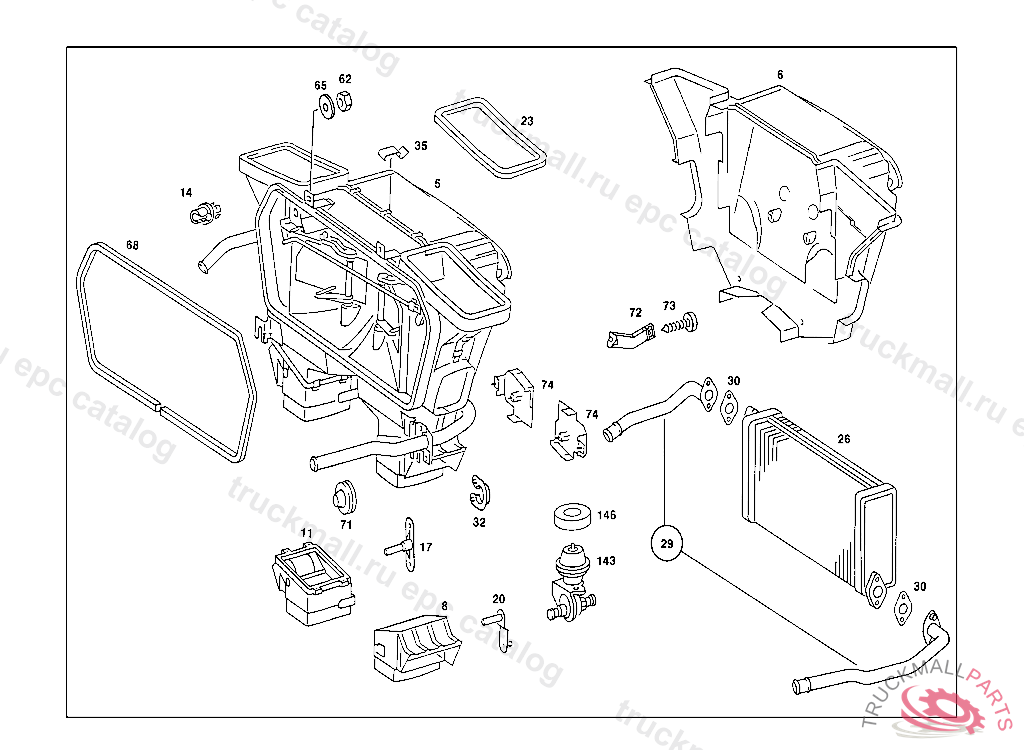

5
HEATER CASE
6
HOUSINGTO BEHR
6
HOUSINGTO VALEO
8
CONNECTOR LEFT TO SOFICA
8
CONNECTOR LEFT TO BEHR
11
CONNECTOR RIGHT TO BEHR
11
CONNECTOR RIGHT TO SOFICA
14
CLIP , Replaced By: A0039885078
14
CLIP
17
LEVER LEGROOM TO BEHR
17
LEVER LEGROOM TO SOFICA
20
LEVER DEFROSTING TO BEHR
20
LEVER DEFROSTING TO SOFICA
23
SEAL DEFROSTING
26
HEAT EXCHANGER
29
PIPE LINE HEAT EXCHANGER PIPES
30
SEAL
32
BRACKET HEAT EXCHANGER WATER PIPE
35
SPRING HEATER CASE TO BEHR,VALEO
62
NUT SPRING-LOADED PUSH ROD
62
NUT , Replaced By: N304032006004
65
WASHER , Replaced By: N009021006208
65
WASHER COMPRESSED AIR LINE TO BRACKET
68
SEAL HEATER CASE TO FIRE WALL
71
GROMMET FEED,HEAT EXCHANGER PIPES THRU FIRE WALL
72
BRACKET AT HEATER CASE,TO OPERATING UNITS, RIGHT
72
BRACKET AT HEATER CASE,TO OPERATING UNITS, LEFT
73
SHEET METAL SCREW , Replaced By: N007981003249
73
SHEET METAL SCREW
74
COVERING AT HEATER CASE,LEGROOM FLAP CONTROL
143
VALVE
146
SPACER
