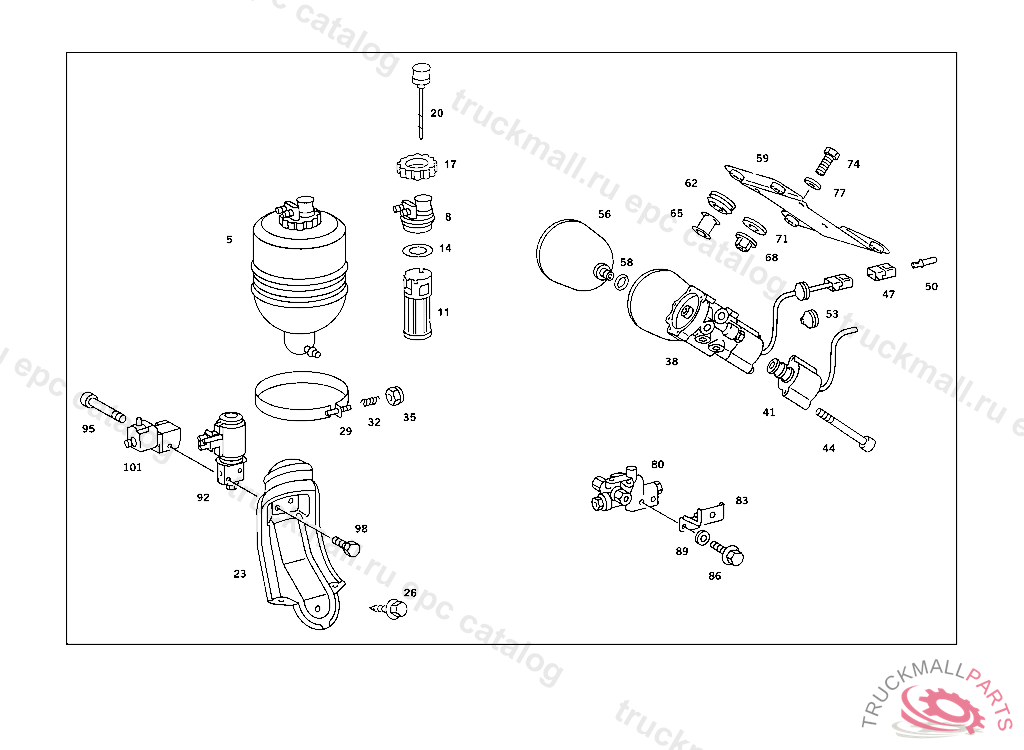

Поз.
Артикул
Описание
5
RESERVOIR (OIL RESERVOIR)
8
COVER
11
FILTER , Replaced By: A1293270091
11
FILTER
14
SEAL RING
17
NUT
20
HOUSING OIL DIPSTICK
23
SUPPORT OIL RESERVOIR TO SIDE MEMBER,FRONT RIGHT
26
SHEET METAL SCREW
29
STRAP ,116.025 059140
32
SPRING OIL RESERVOIR TO CONSOLE
35
NUT , Replaced By: N913002006009
35
NUT OIL TANK TO BRACKET
38
VALVE , Replaced By: A1243504957
38
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: A 688500,F 996955, Replaced By: A1243505057
38
VALVE , Replaced By: A2023500057, +001A1869970681
38
VALVE LIMITED-SLIP DIFFERENTIAL CONTROL VALVE
41
VALVE SOLENOID VALVE TO 124 350 49 57
44
SCREW
47
PLUG HOUSING
50
PLUG PIN
53
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
56
PRESSURE ACCUMULATORTO 124 350 49 57
58
SEAL RING
59
BRACKET LIMITED-SLIP DIFFERENTIAL CONTROL VALVE
62
RUBBER BUFFER
65
BUSHING
68
NUT DIODE TO BRACKET,5 922534
71
WASHER REFLECTOR TO BRACKET
74
SCREW COVER PLATE TO COVER PLATE M 6 X 12
74
SCREW , Replaced By: N304017006018
77
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
80
VALVE (DISTRIBUTOR VALVE)
83
BRACKET SIDE MEMBER IN FRONT OF TOWING EYE
86
SCREW , Replaced By: N304017006034
86
SCREW COVER PLATE TO COVER PLATE M 6 X 10
89
WASHER COMPRESSED AIR LINE TO BRACKET
92
VALVE (CONTROL VALVE),F 545471
95
SCREW COVERING TO CAB M 6X25
98
SCREW EXHAUST BRAKE SEPARATION POINT
101
VALVE RAISED LEVEL LOCKING VALVE
