Поз.
Артикул
Описание

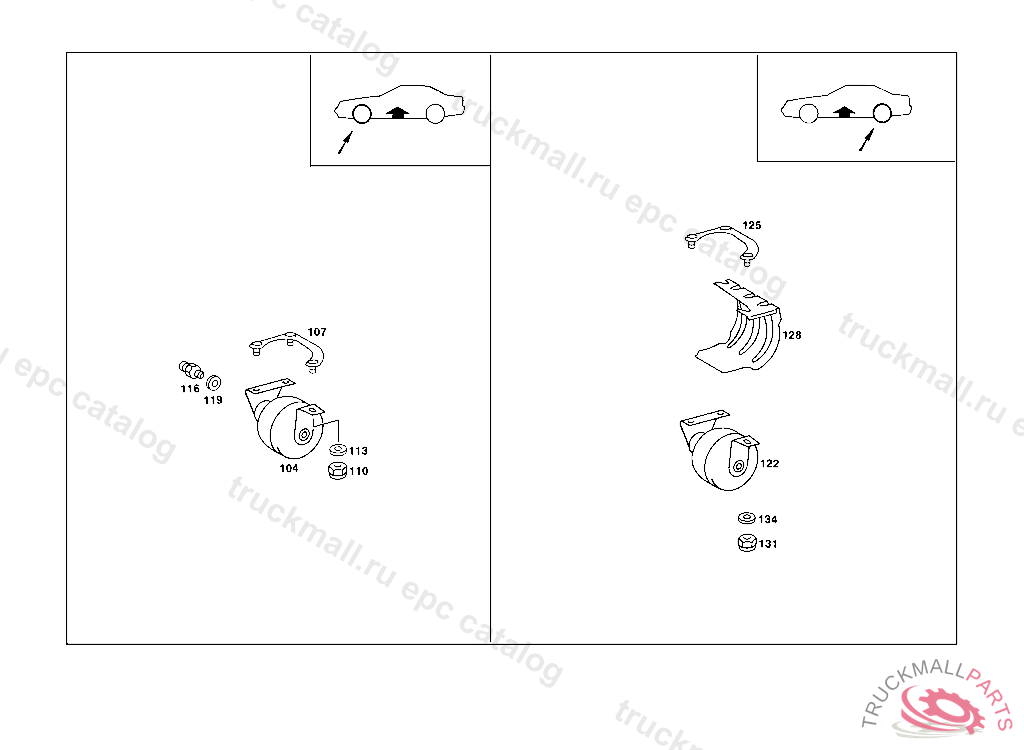

104
AIR CELL (SPRING LOAD ACCUMULATOR)
107
BRACKET FLOOR BELOW REAR SEAT,FOR SELF-LEVELG. DEVICE SPRING-LOAD ACCUMULATOR,RIGHT
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
NUT , Replaced By: N913004008001
113
WASHER , Replaced By: N000125008443
113
WASHER EXHAUST MUFFLER TO STRAP
116
FITTING ON FRONT SPRING LOAD ACCUMULATOR
119
SEAL RING LINE CONNECTION
122
AIR CELL (SPRING LOAD ACCUMULATOR)
125
BRACKET FLOOR BELOW REAR SEAT,FOR SELF-LEVELG. DEVICE SPRING-LOAD ACCUMULATOR,LEFT
128
PROTECTIVE PLATE LEFT SPRING LOAD ACCUMULATOR
131
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
131
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
131
NUT , Replaced By: N913004008001
134
WASHER , Replaced By: N000125008443
134
WASHER EXHAUST MUFFLER TO STRAP
