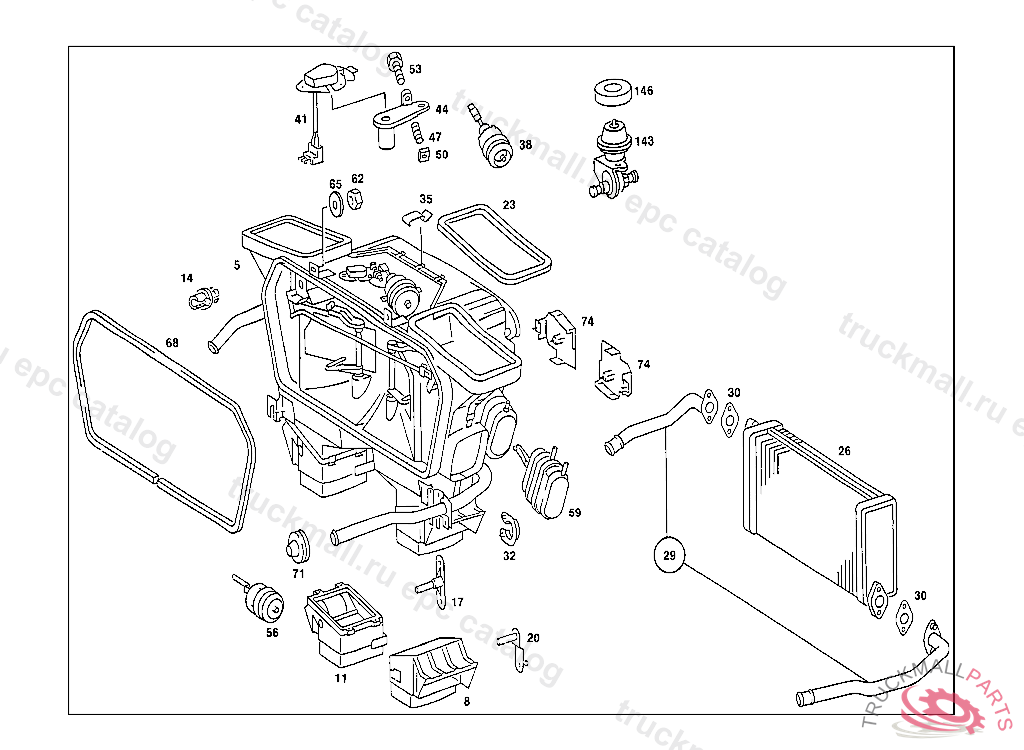

Поз.
Артикул
Описание
5
HEATER CASE
5
HEATER CASE , Replaced By: A0008300762
8
CONNECTOR LEFT TO BEHR
11
CONNECTOR RIGHT
14
CLIP
14
CLIP , Replaced By: A0039885078
17
LEVER LEGROOM TO BEHR
20
LEVER DEFROSTING TO BEHR
23
SEAL DEFROSTING
26
HEAT EXCHANGER
26
HEAT EXCHANGER , Replaced By: A0028355401
29
PIPE LINE HEAT EXCHANGER PIPES
30
SEAL
32
BRACKET HEAT EXCHANGER WATER PIPE
35
SPRING HEATER CASE TO BEHR,VALEO
38
ELEMENT
41
RESISTOR AIR MIXING FLAP CONTROL
44
LEVER
47
SPRING
50
NUT
53
SCREW
56
ELEMENT FROM OPERATING UNIT TO DEFROSTER NOZZLE FLAP, LEGROOM
59
ELEMENT DEFROSTER NOZZLE FLAP CONTROL
59
ELEMENT DEFROSTER NOZZLE FLAP CONTROL,F 002650
62
NUT CYLINDER TO BRACKET TO0002902112
62
NUT BATTERY MOUNTING
65
WASHER , Replaced By: N009021006208
65
WASHER COMPRESSED AIR LINE TO BRACKET
68
SEAL HEATER CASE TO FIRE WALL
71
GROMMET FEED,HEAT EXCHANGER PIPES THRU FIRE WALL
74
COVERING AT HEATER CASE,LEGROOM FLAP CONTROL
143
VALVE BETWEEN THE RETURN HOSES
143
VALVE
146
SPACER
999
HEATER CASE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 109699, Replaced By: A2018300962
999
ELEMENT , Replaced By: A2018000875, +001A2018210260, +001A2018350043, +001A0059939301, +001N000562003001, +001N000931003000
999
HEAT EXCHANGER , Replaced By: A0028353701
