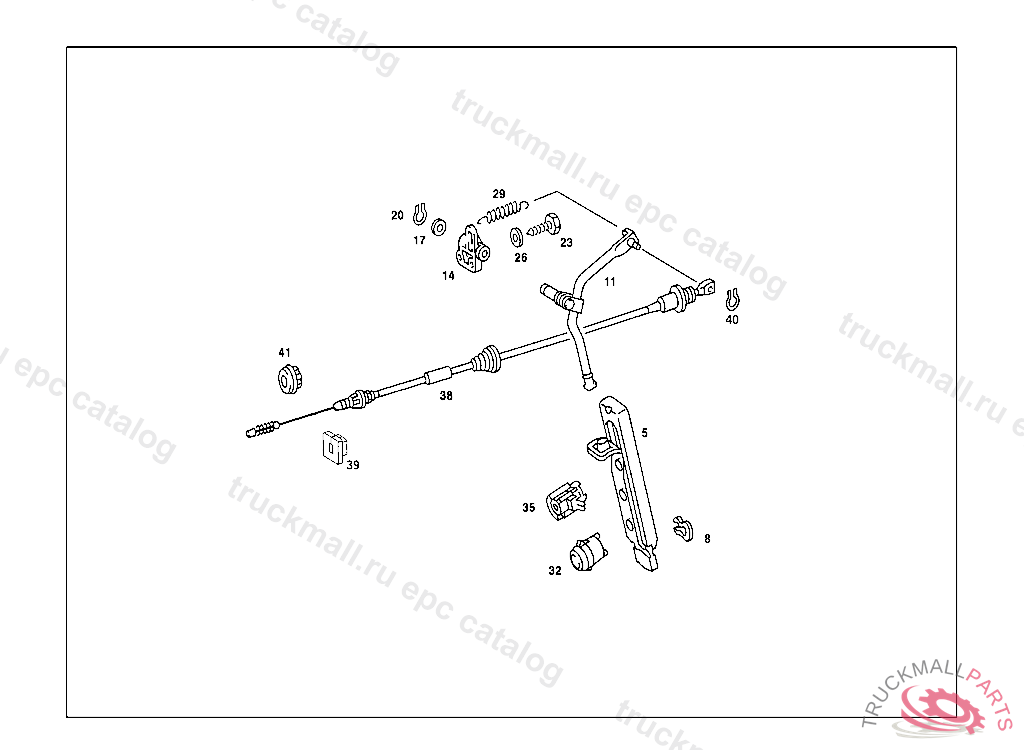

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
CLIP
8
BRACKET , Replaced By: A1249888678
11
LEVER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. A 332063 F 281793, Replaced By: A2013000725, +001A1249931010
11
LEVER ACCELERATOR PEDAL
14
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
17
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
20
LOCK RINGTO 000 553 37 01,000 553 39 01,
23
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
26
WASHER COMPRESSED AIR LINE TO BRACKET
26
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
29
SPRING , Replaced By: A1269932210
29
SPRING
29
SPRING ACCELERATOR PEDAL,B 838714,J 003392
32
STOP FULL THROTTLE
35
SWITCH , NOT USED
35
SWITCH , NOT USED
38
WIRE CABLE
38
WIRE CABLE
39
GUIDE
40
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
41
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
41
RUBBER BUFFER , Replaced By: A2013010285
999
BEARING PEDAL LEVER
