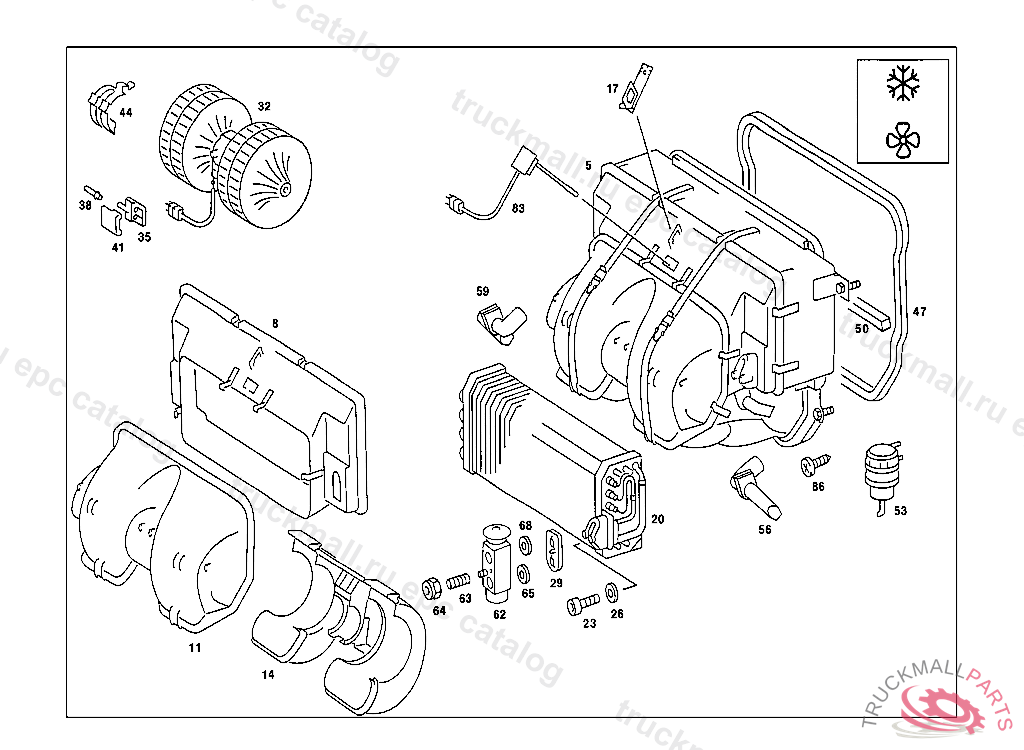

Поз.
Артикул
Описание
5
EVAPORATOR
8
HOUSINGTO 201 830 13 58
11
COVERING BLOWER CASE
14
BRACKET BLOWER
17
BRACKET TEMPERATURE-FEELER CAPILLARY TUBE
20
EVAPORATOR
20
EVAPORATOR , Replaced By: A2018302358
20
EVAPORATOR , Replaced By: A2018302258
20
EVAPORATOR , Replaced By: A0008305158
20
EVAPORATOR , Replaced By: A0008304258
23
SCREW , ONLY USED WITH AIR CONDITIONING AUTOMATICS AND TEMPAMATIK
26
LOCK PLATE , ONLY USED WITH AIR CONDITIONING AUTOMATICS AND TEMPAMATIK
29
CLIP EXPANSION VALVE
32
ELECTRIC MOTOR EVAPORATOR CASE
35
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
38
ROUND PIN BUSHING4 MM2
41
COVERTO 008 545 08 28,008 545 09 28
41
CAP , Replaced By: A0125450428, +001A0125450528
44
SPRING
47
SEAL , Replaced By: A1298350298
47
SEAL EVAPORATOR CASE TO FIRE WALL
50
SEAL AT CENTRAL INSIDE PART BELOW WINDSHIELD
50
SEAL , Replaced By: A2018350398
53
ELEMENT MAIN AIR FLAP CONTROL
56
HOSE WATER DRAIN,LEFT
59
HOSE WATER DRAIN,RIGHT
62
VALVE (EXPANSION VALVE), ONLY USED WITH AIR CONDITIONING AUTOMATICS AND TEMPMATIK
63
STUD BOLT
64
NUT , Replaced By: N913019006000
64
NUT , Replaced By: N913012006001
65
SEAL RING HOSE TO RESERVOIR 10.6 MM
68
SEAL RING , Replaced By: A1409970845
68
SEAL RING , Replaced By: A1249970545
68
SEAL RING HOSE TO CONDENSER 14 MM
83
TEMPERATURE SENSOR , Replaced By: A2018300672
83
TEMPERATURE SENSOR , Replaced By: A2018300672
83
TEMPERATURE SENSOR EVAPORATOR
86
SHEET METAL SCREW FOOTREST
999
EVAPORATOR , Replaced By: A0008303258
999
VALVE , Replaced By: A2018300684
999
VALVE , Replaced By: A2018300684
