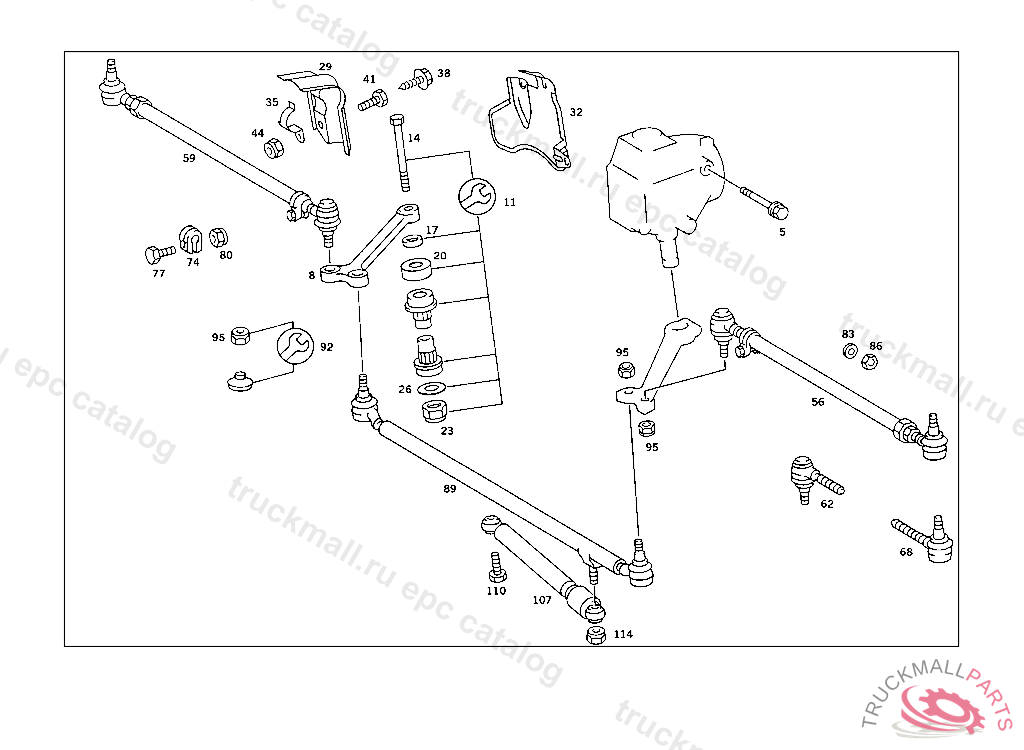

Поз.
Артикул
Описание
5
SCREW STEERING TO FRAME
8
STEERING INTERMEDIATE ARM
11
REPAIR KIT STEERING INTERMEDIATE ARM BEARING
14
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
17
WASHER , Replaced By: N000125015019
20
DUST CAP INTERMEDIATE LEVER TO PIVOT BEARING
23
NUT , Replaced By: N910113014000
23
NUT STEERING SUPPORT TO FRAME
26
SPACER WASHER INTERMEDIATE LEVER TO PIVOT BEARING
29
PROTECTIVE PLATE STEERING INTERMEDIATE ARM BEARING
35
BRACKET
38
SHEET METAL SCREW , Replaced By: N000000000543
38
TAPPING SCREW
44
NUT , Replaced By: N913023006001
44
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
56
TIE ROD RIGHT
59
TIE ROD RIGHT
62
BALL JOINT R.H. THREAD TO 201 330 16 03
62
BALL JOINT R.H. THREAD TO 201 330 15 03
68
BALL JOINT L.H. THREAD TO 201 330 16 03
68
BALL JOINT L.H. THREAD TO 201 330 15 03
74
CLAMP JOINT TO TIE ROD
74
CLAMP JOINT TO TIE ROD
77
SCREW 3/2-WAY VALVE TO BRACKET
80
NUT PUMP TO BRACKET
80
NUT , Replaced By: N913004006001
80
NUT HEATING PIPE TO BRACKET
83
RING JOINT TO TIE ROD, Replaced By: A2023380217
83
RING JOINT TO TIE ROD, Replaced By: A2023380217
83
NUT JOINT TO TIE ROD
86
NUT
89
DRAG LINK
92
REPAIR KIT JOINT
95
NUT BRACKET TO CROSS MEMBER
107
SHOCK ABSORBER (STEERING SHOCK ABSORBER)
107
SHOCK ABSORBER , Replaced By: A1244630432
110
SCREW , Replaced By: N000961010031
110
SCREW , Replaced By: N308676010023
110
SCREW BRACKET TO CROSS MEMBER M 10X40
114
HEXAGON NUT
114
NUT , Replaced By: N910113010002
