Mercedes A1234620460 - Уплотнительное кольцо

190 D 2.5 TURBODIESEL JAPAN FROM 09/88 201.128

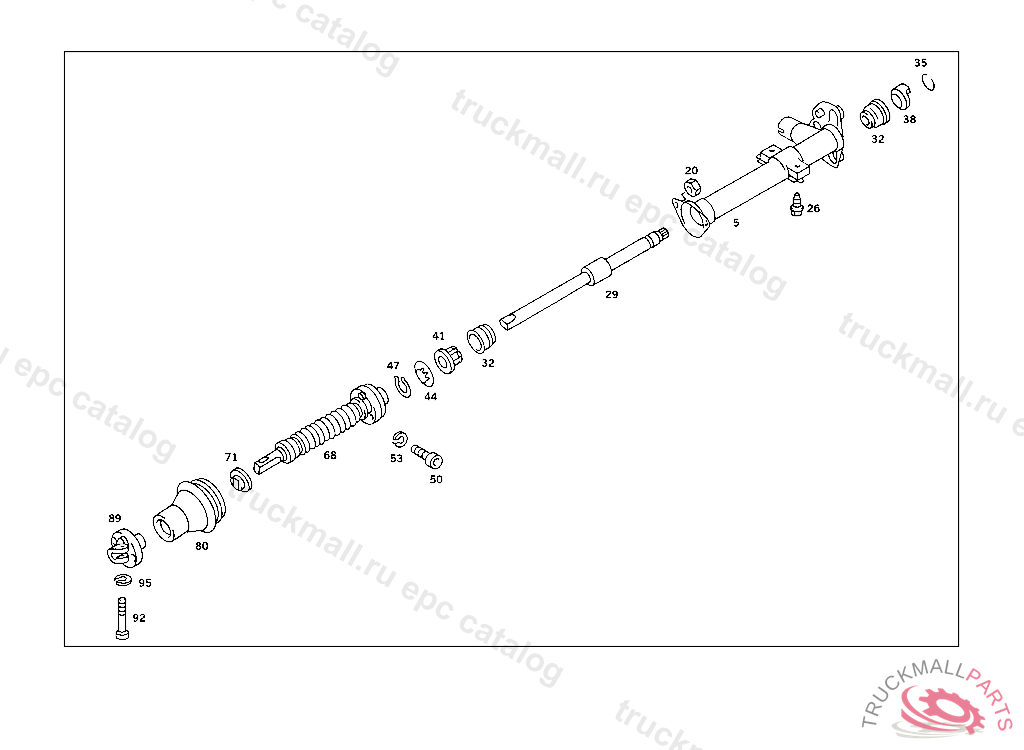

46 STEERING - 075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT IL. 1

Поз.
Артикул
Описание
5
A2014604016
STEER. COLUMN JACKET TUBE
20
N304032006008
NUT BATTERY MOUNTING
20
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
26
A2019900204
SCREW STEERING COLUMN JACKET TUBE TO BODY
29
A2014601309
STEERING SHAFT , Replaced By: A2014602009
29
A2014602009
STEERING SHAFT TOP
32
A1269810025
BALL BEARING
35
N912009025100
SNAP RING
38
A1264620051
RING
41
A2014620017
CONICAL SLEEVE
44
A1239930226
DISC SPRING , 023 108180 033 045305 123 087739 130 110887
47
N900055025401
LOCK RING
50
N000912008098
SCREW , Replaced By: N000912008204
53
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
53
N007980008003
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL, Replaced By: N912006008000
68
A2014601909
STEERING SHAFT BOTTOM
71
A1234620460
SEAL RING
80
A2014621796
BOOT
89
A1234600210
STEERING COUPLING
92
A2029902101
SCREW
92
A1239900720
SCREW , Replaced By: A2029902101
95
N007980008003
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL, Replaced By: N912006008000
95
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
