190 D 2.5 TURBODIESEL JAPAN FROM 09/88
201.128
82 ELECTRICAL SYSTEM

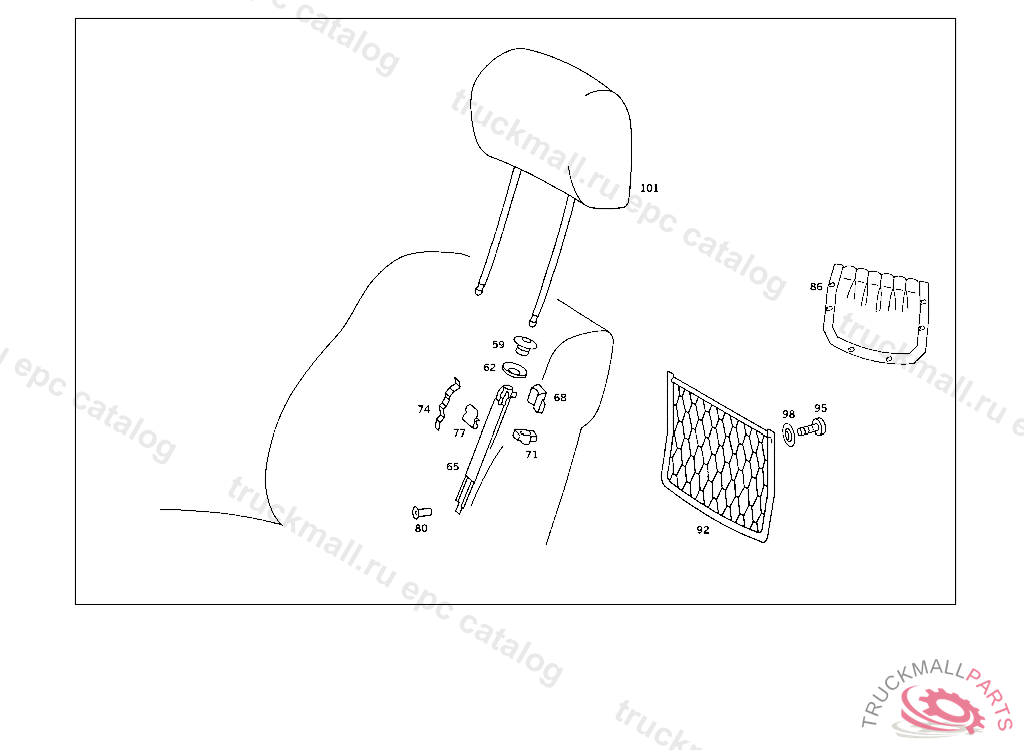

001 FRONT SEAT BACKREST,VELOURS (TYPE 201,FOR ELECTRICAL PARTS,SEE STANDARD MICROFIC IL.2

Mercedes A2019901636 - Болт

190 D 2.5 TURBODIESEL JAPAN FROM 09/88 201.128

82 ELECTRICAL SYSTEM - 001 FRONT SEAT BACKREST,VELOURS (TYPE 201,FOR ELECTRICAL PARTS,SEE STANDARD MICROFIC IL.2

Поз.
Артикул
Описание
59
A1269880082
EYE
62
A1269901240
WASHER STRAP TO REAR BACKREST
65
A1079700215
RAIL RIGHT, HEADREST
65
A1079700115
RAIL LEFT
68
A1159750024
SLIDE
71
A1159750023
FRICTION PIECE TOP
74
A1249750137
SPRING QUIDE RAIL,LEFT
77
A1159880478
CLIP
80
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
86
A2018100249
POCKET USED WITH SOFT LEATHER TRIM,NO.9084I NO.5098I NO.8478I NO.8479I NO.8480I NO.6152I NO.3132I NO.7212I I
92
A2018100049
LUGGAGE NET FRONT SEAT BACKREST,REAR
95
A0019848529
SCREW
95
A2019901636
SCREW , Replaced By: A0019848529
98
A1129900042
WASHER , Replaced By: A3019900042
98
A3019900042
WASHER
101
A1269706950
HEADREST "SPORT" LEATHER,F 214988 NOT FOR AUSTRALIANO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
101
A1409700350
HEADREST "SPORT" LEATHER,F 214989 NOT FOR AUSTRALIANO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
101
A1269705750
HEADREST FRONT SEAT
101
A2019702850
HEADREST FABRIC,NO.9079I NO.5093I NO.8471I NO.8467I NO.8463I NO.6147I NO.3126I NO.7206I
101
A1269705350
HEADREST FRONT SEAT
