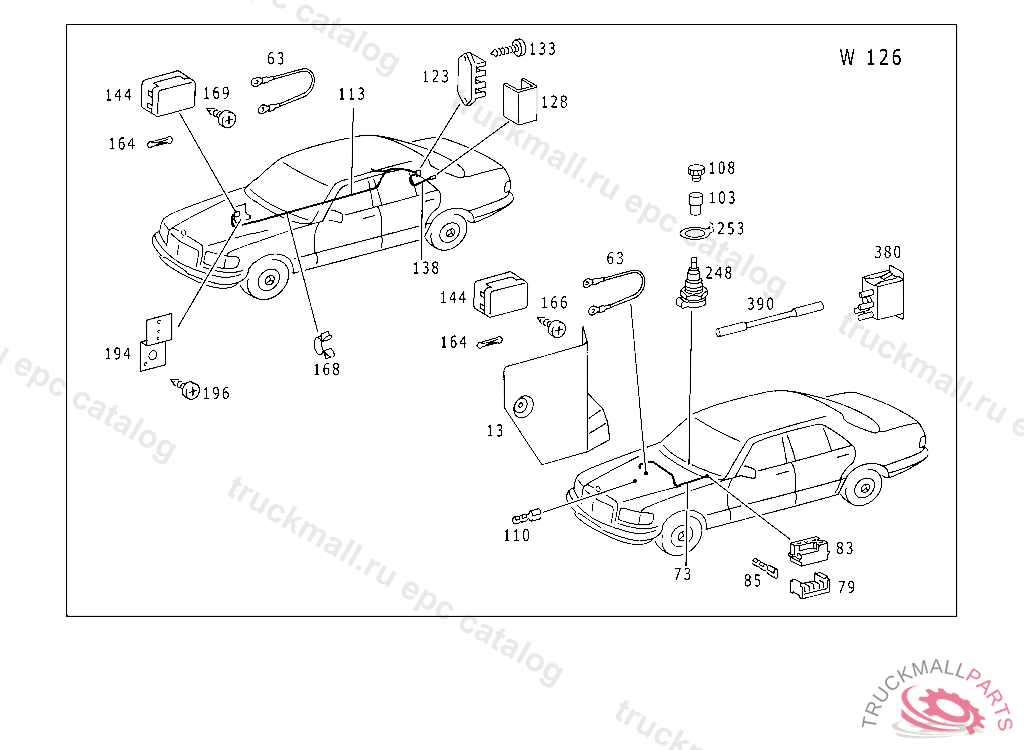

Поз.
Артикул
Описание
13
PANELLING FRONT PANEL,LATERAL RIGHT
63
ELECTRIC CABLE TELEPHONE FEED-IN
63
ELECTRIC CABLE FROM DISTRIBUTOR TERMINAL TO ADDITIONAL FUSE
73
ELECTRIC CABLE FROM RADIOPHONE PLUG TO DISTRIBUTOR TERMINAL
79
COVER UPPER PART
83
CONNECTOR LOWER PART
85
ROUND PIN BUSHING4 MM2
103
PLUG LOWER PART
108
PLUG UPPER PART
110
ROUND PIN BUSHING4 MM2
113
ELECTRIC CABLE COOL BOX, UP TO CHASSIS 126.A 017635
113
ELECTRIC CABLE FROM FUSE BOX TO LUGGAGE COMPARTMENT
113
ELECTRIC CABLE FROM FUSE BOX TO LUGGAGE COMPARTMENT
123
CABLE CONNECTOR TRIPLE
128
CAP
128
COVERING , UP TO CHASSIS 126.A 017635
133
SHEET METAL SCREW , Replaced By: N000000000453
133
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
133
SHEET METAL SCREW MODULE TO HOUSING
138
ELECTRIC CABLE COOL BOX, UP TO CHASSIS 126.A 017635
144
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
144
FUSE BOX DOUBLE,WITH DIODE A + C
164
FUSE , Replaced By: N072581005100
164
FUSE , Replaced By: N072581008101
164
FUSEA16
164
FUSE (SPARE FUSE) 5 A
164
FUSEA8
166
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
168
CLAMP BOWDEN CABLE TO CAB
169
SHEET METAL SCREW MODULE TO HOUSING
169
SHEET METAL SCREW , Replaced By: N000000000453
194
BRACKET FUSE BOX
196
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
248
PLUG SOCKET
248
PLUG SOCKET AT COVERING
253
GROUND STRAP TERMINAL AT COVERING
380
SWITCH
390
ELECTRIC CABLE ROCKER SWITCH LIGHT GUIDE
