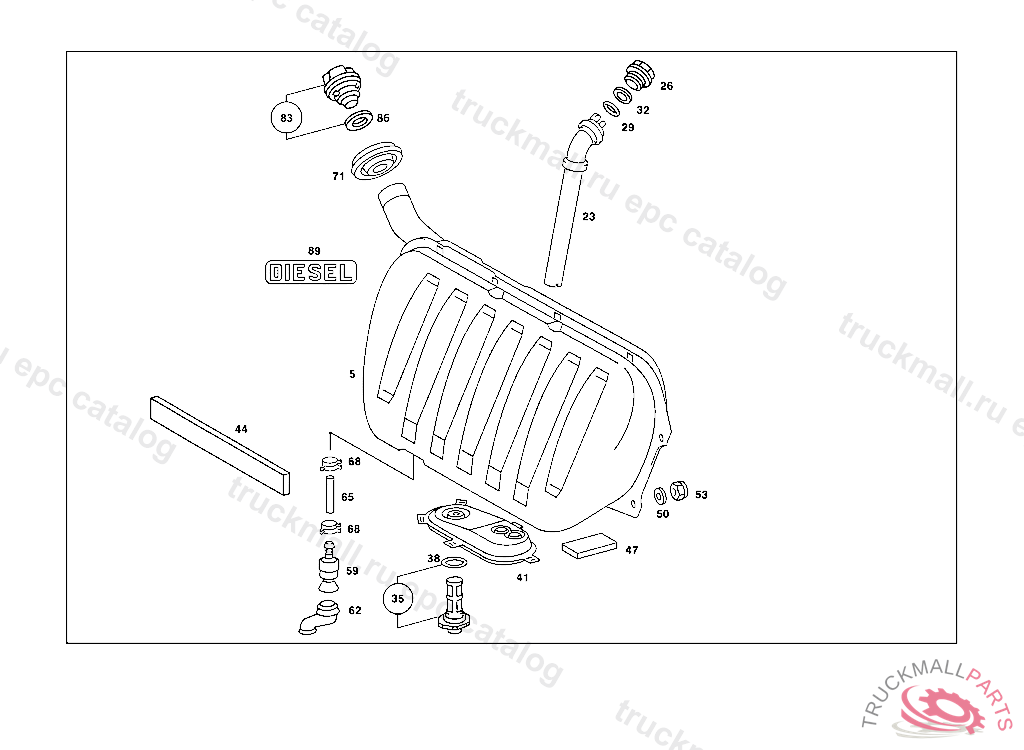

Поз.
Артикул
Описание
5
FUEL TANK , A 663706 F 925786
23
GAUGE SENDER UNIT
26
FLANGE
29
SEAL RING
32
SEAL RING
35
FUEL STRAINER PARTS KIT
35
FUEL STRAINER , Replaced By: A1244700106
38
SEAL RING
41
BOOT
44
PAD FUEL TANK FRONT SIDE, ONLY APPLICABLE TO STEEL FUEL TANK
47
PAD FUEL TANK BOTTOM SIDE
50
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
53
NUT SWITCH TO FLOOR PLATE
59
VALVE , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
59
VALVE , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
62
BOOT , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
65
HOSE ***
65
HOSE , Replaced By: A2019970852
68
LOOM TIE , Replaced By: A1249972090
68
LOOM TIE
71
GROMMET FILLER NECK THRU FENDER RECESS
83
FILLER CAP , Replaced By: A0004700730
86
SEAL RING
89
GUIDE SIGN DIESEL REFILLING
89
GUIDE SIGN , Replaced By: A1245840246
89
GUIDE SIGN , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A2105849217
