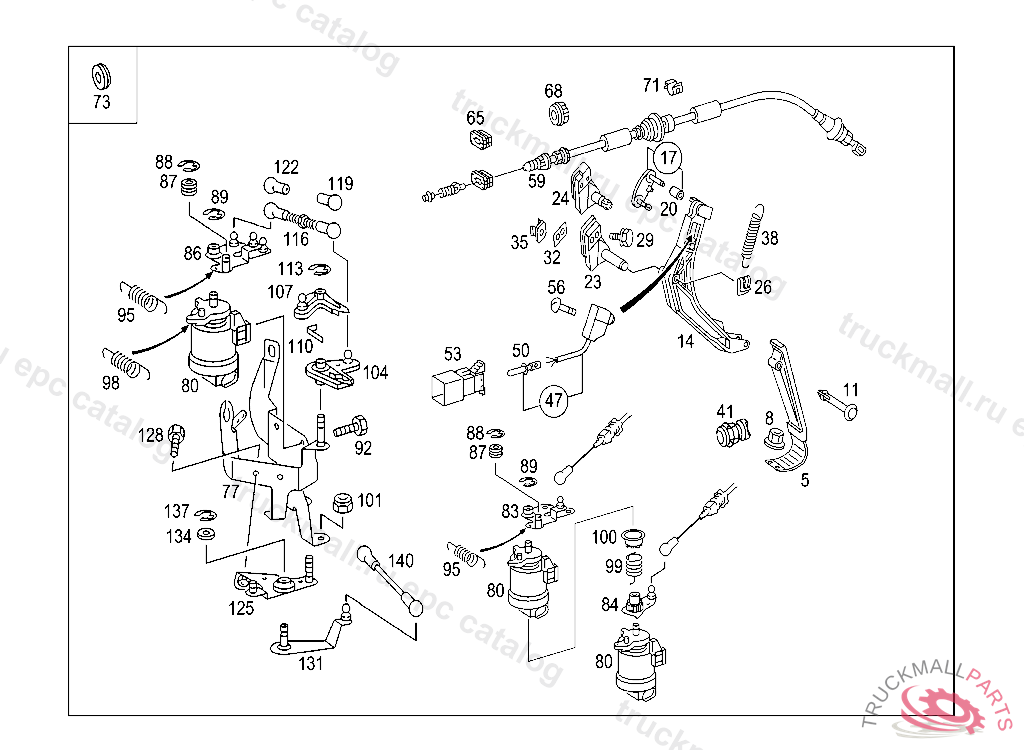

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL , Replaced By: A2203000204
8
NUT ACCELERATOR PEDAL TO FIRE WALL
11
PIN ACCELERATOR PEDAL TO LEVER
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
14
LEVER ACCELERATOR PEDAL,F 505053
14
LEVER ACCELERATOR PEDAL,F 505053
17
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
23
BEARING ACCELERATOR PEDAL BEARING,B 838715,J 003393
24
BEARING ACCELERATOR PEDAL BEARING,A 346276
26
CLIP CABLE TO BRACKET,5 318121
29
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
29
SCREW , WITH DIESEL ENGINE
29
COMBINATION BOLT , Replaced By: N304017006019, +001N000137006204
32
GASKET BEARING TO FIRE WALL
35
NUT RETAINER LICENSE PLATE TO BRACKET
38
SPRING ACCELERATOR PEDAL
38
SPRING ACCELERATOR PEDAL
41
STOP ACCELERATOR PEDAL,A 907056
59
WIRE CABLE ,F 547166F 711024
59
WIRE CABLE , Replaced By: A2083000230
59
WIRE CABLE , Replaced By: A2083000430
59
WIRE CABLE , Replaced By: A2083000030
59
WIRE CABLE , Replaced By: A2023001530
59
WIRE CABLE , Replaced By: A2023001330
59
WIRE CABLE , F 758208 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 758207 WITH CODE 809
59
WIRE CABLE , F 758208 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 758207 WITH CODE 809
59
WIRE CABLE , A 470873 F 547165
68
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
71
CLIP ELECTRIC CABLE TO FIXTURE
73
EXPANSION PLUG
77
BRACKET , A 470874 F 547166 A 519673 F 619720 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 519674, F 619721 WITH CODE 807
77
BRACKET
77
BRACKET ,F 547165
80
SENDER UNIT , A 218852 F 159751 ALSO INSTALLED IN F 171339,F 173246,F 201987.
80
SENDER UNIT (PEDAL VALUE SENSOR)
84
LEVER (REVERSING LEVER), F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 619720 WITH CODE 808
84
LEVER , Replaced By: A2103001128, +001A1689930320
86
LEVER , Replaced By: A2023000928
86
LEVER , Replaced By: A2023000828, +001A2103010011, +001A2109930310, +001N006799005009
86
LEVER (REVERSING LEVER)
92
SCREW , Replaced By: N304017006016
92
SCREW PUMP TO BRACKET
98
SPRING INJECTION PUMP CONTROL LEVER
99
SPRING AT REVERSING LEVER,A 346276
100
CLAMPING PIECE AT REVERSING LEVER,A 346276
101
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
104
LEVER ANGULAR LEVER
107
LEVER (DRAG LINK)
110
SPRING AT DRAG LINK
113
LOCK PLATE , 656999
116
ROD FROM ANGULAR LEVER TO REVERSING LEVER
119
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
119
CONICAL CUPTO 102 070 09 75
122
BALL SOCKET
125
BRACKET
128
SCREW COVER PLATE TO COVER PLATE M 6 X 12
131
LEVER CONTROL LEVER
134
FITTED WASHER AS REQUIRED 1.0 MM
137
LOCK PLATE RELEASE LEVER TO SHAFT
140
ROD FROM REVERSING LEVER TO CONTROL LEVER
