Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

C 200 CDI / CLC 200 CDI 203.707

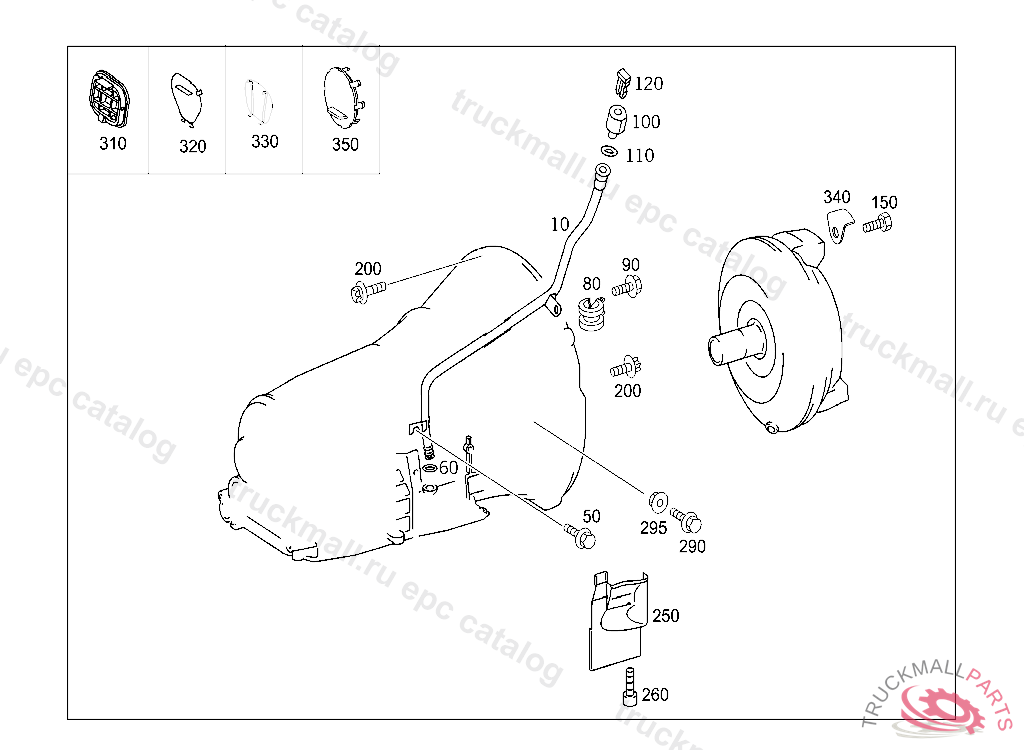

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE

Поз.
Артикул
Описание
10
A2032700284
OIL FILLER PIPE
50
N910106006004
HEXAGON HEAD BOLT
60
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
80
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
80
A0009959342
MOUNTING CLAMP OIL FILLER TO ENGINE
90
N910106006004
HEXAGON HEAD BOLT
100
A1402700091
COVER OIL FILLER PIPE
110
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
120
A1409910055
DOWEL PIN OIL FILLER PIPE
150
A1249902201
SCREWM 8X18
200
N910143010000
SCREW PLATE TO FRAME M 10X45
200
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
250
A1402710288
COVER TRANSMISSION CASE AND OIL PAN
260
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
320
A6110140033
EXPANSION PLUG MOUNTING HOLE IN OIL PAN
340
A2202711340
BRACKET SOUND DEADENING MAT TO TORQUE CONVERTER HOUSING
340
A2032610040
BRACKET SOUND DEADENING MAT TO TORQUE CONVERTER HOUSING
