Mercedes A2034760926 - Шланг

C 200 CDI / CLC 200 CDI 203.707

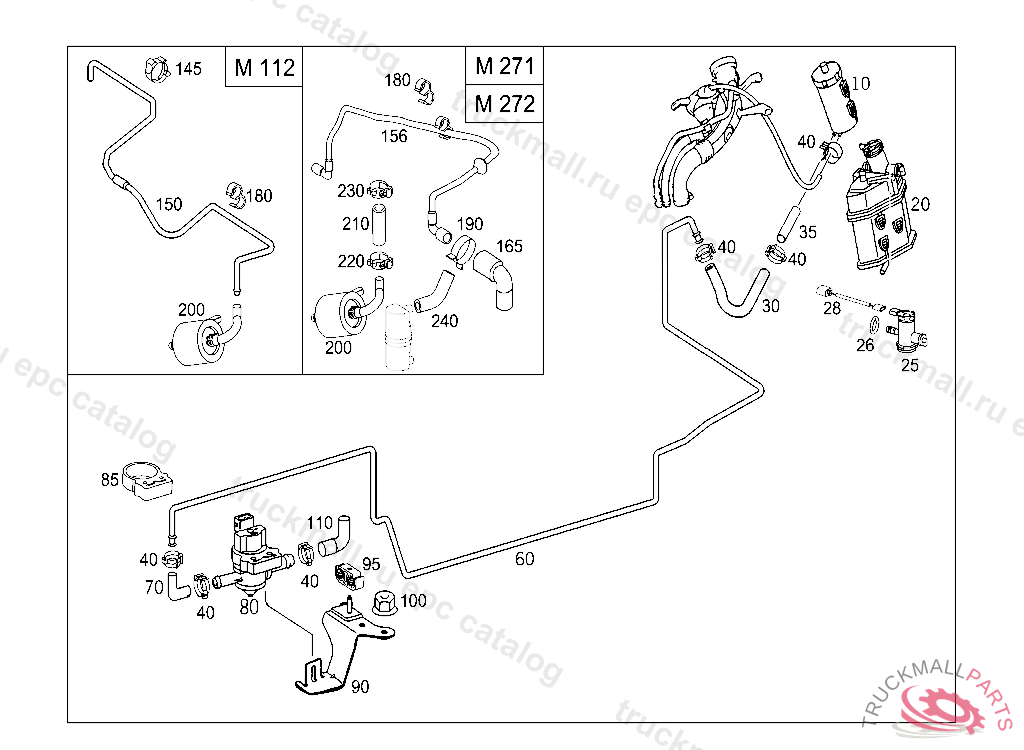

47 FUEL SYSTEM - 060 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM
  • Поз.
    Артикул
    Описание
  • 26
    SEAL RING VALVE, J 01715720040430805
  • 35
    VALVE REGENERATION LINE
  • 60
    BREATHER PIPE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE, A 88072320051130 E 02000020070101
  • 60
    PURGE LINE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE, A 76563320041217 E 00000120000101 A 88072220051130 E 01999920070101, Replaced By: A2034713515, +008A0009954075, +008A2014760840
  • 85
    BRACKET REGENERATION VALVE
  • 210
    HOSE FROM FEED LINE TO FILTER 240 MM
  • 220
    HOSE CLAMP UPSTREAM OF FLUID RESERVOIR
  • 230
    CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
  • 240
    HOSE FLUID RESERVOIR
  • 240
    HOSE FLUID RESERVOIR
