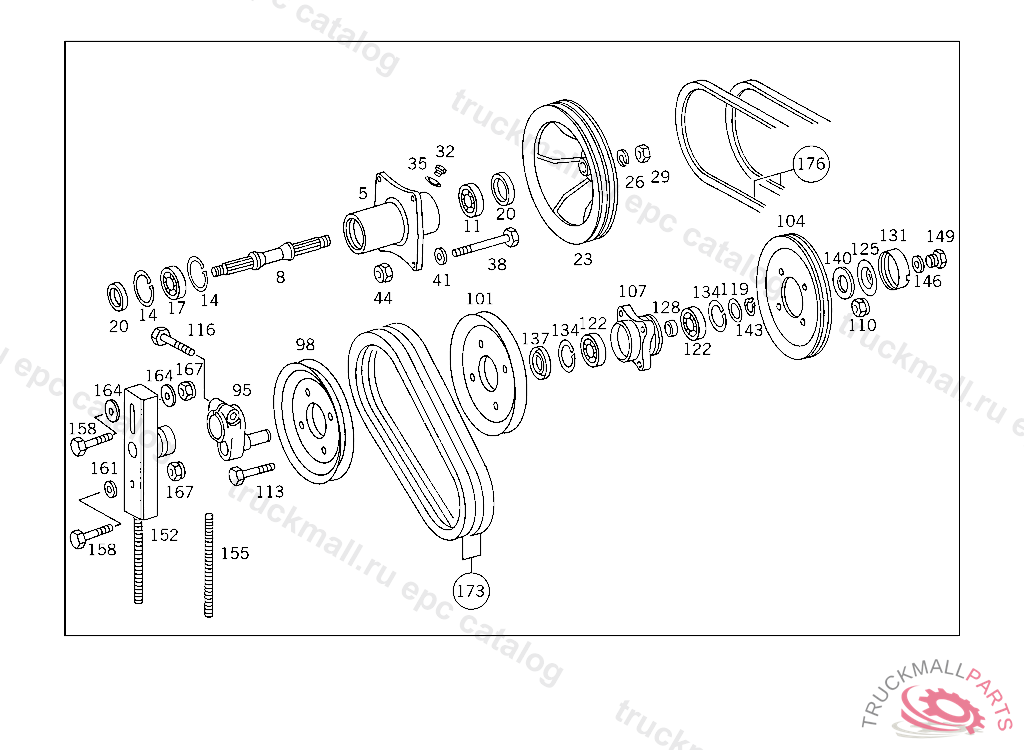

Поз.
Артикул
Описание
5
BEARING BODY FAN DRIVE
5
BEARING BODY FAN DRIVE
8
FAN SHAFT
8
SHAFT
11
CYLINDR. ROLLER BEARING FAN DRIVE
11
CYLINDR. ROLLER BEARING ON RADIATOR SIDE
14
LOCK RING52X2 MM
17
GROOVED BALL BEARING
20
SEAL RING CASE COVER
23
PULLEY FAN DRIVE
26
LOCK WASHERROCKINGER TYP 59 G140,59 G150
29
NUT HUB TO FAN SHAFT
29
NUT WEAR INDICATOR
32
SCREW PLUG 4/2-WAY VALVE
32
SCREW PLUG AIR DEHYDRATOR
35
SEAL RING LINE CONNECTION
38
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
38
SCREW , Replaced By: N304017008053
41
WASHER EXHAUST MUFFLER TO STRAP
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT , Replaced By: N913004008001
95
LEVER ,042506, Replaced By: A3072000573, +001A0119975447
95
LEVER BELT TIGHTENER,042507
98
PULLEY ONE-GROOVE,ELBOWED 188 MM
101
PULLEY STRAIGHT 196 MM,076962 ALSO INSTALLED IN:076734
101
PULLEY180 MM,000475
104
PULLEY TWO-GROOVE 180 MM,076962 ALSO INSTALLED IN:076734
104
PULLEY TWO-GROOVE 185 MM,076961 EXCEPT:076734
107
HUB
107
HUB
110
NUT , Replaced By: N913004008001
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
SCREW VALVE TO BRACKET
116
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
116
SCREW , Replaced By: N308676012011
116
SCREW , Replaced By: N308676012031
119
SPACER WASHER BELT TIGHTENER 0.50 MM
119
SPACER WASHER BELT TIGHTENER 0.20 MM
122
GROOVED BALL BEARING
122
BALL BEARING HUB,1/97
125
EXPANSION PLUG
125
EXPANSION PLUG PULLEY,1/97
128
SPACER TUBE
131
NUT TIGHTENER PULLEY
134
LOCK RING52X2 MM
137
SEAL RING
137
SEAL RING PULLEY,1/97
140
SEAL RING BATTERY MASTER SWITCH
143
LOCK RING
146
SEAL RING LINE CONNECTION
149
SCREW PLUG AIR DEHYDRATOR
149
SCREW PLUG 4/2-WAY VALVE
152
STOP , Replaced By: A3072000639, +001N000931010264
152
SUPPORT CLAMPING LEVER,075186
155
STUD ,075186
158
SCREW RADIATOR M 10X45
158
SCREW ENGINE MOUNTING TO CONSOLE
161
WASHER RADIATOR TO RUBBER MOUNTING
161
WASHER , Replaced By: N000125010532
164
WASHER STRAP TO SUPPORT
167
NUT , Replaced By: N910113010000
167
NUT STRAP TO BRACKET
173
V-BELT FROM VIBRATION DAMPER TO TIGHTENER PULLEY,067314 EXCEPT:066677, 067096, 067191, 067210, 067240, 067246, 067326
173
V-BELT FROM VIBRATION DAMPER TO TIGHTENER PULLEY,071967076961 EXCEPT:076734
173
V-BELT TOOTHED,SET2 PIECES 12.5X1693 MM
173
V-BELT , Replaced By: A0109976792
173
V-BELT13X2425
173
V-BELT LOW TENSIBILITY,SET2 PIECES 12.5X1750 MM
176
V-BELT13X1485
176
V-BELT LOW TENSIBILITY,SET2 PIECES,076961 EXCEPT:076734
999
STUD SUPPORT TO BASE FRAME,076193 EXCEPT:075800, 075853, 075889
999
SEPARATOR FAN SHAFT,1/97
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
