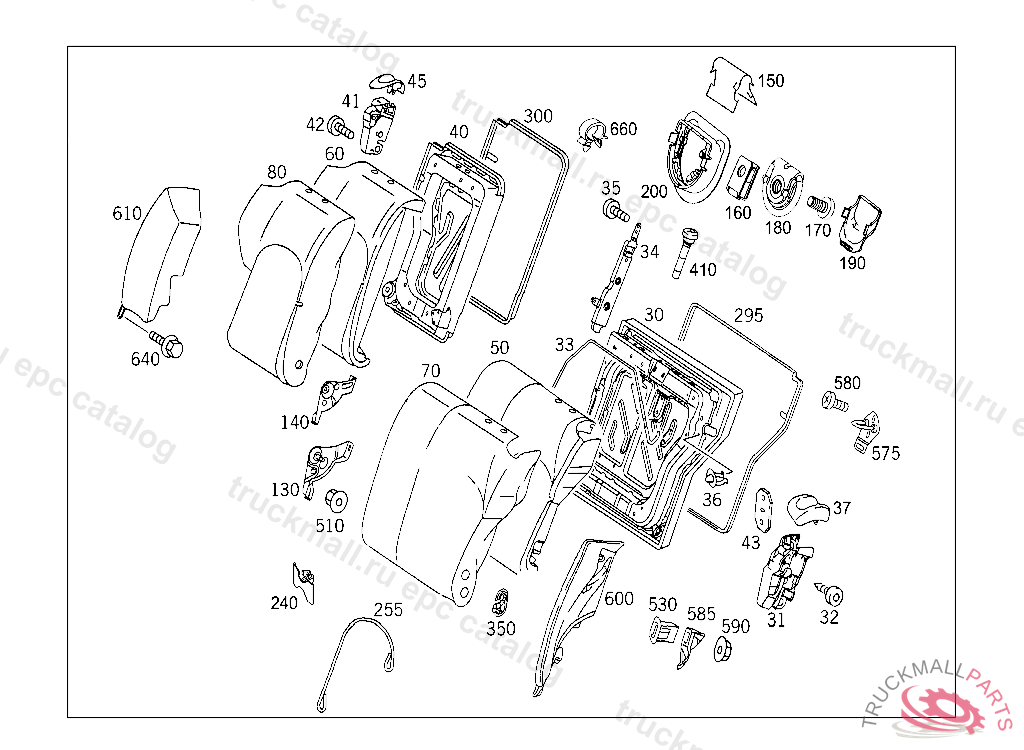

Поз.
Артикул
Описание
30
BACKREST FRAME LEFT
31
UNLOCKING LEFT
31
LOCK FOR SEAT CUSHION LEFT, Replaced By: A2039202172
32
BOLT UNLOCKING MECHANISM TO FRAME M8X50
33
PULL LEFT BACKREST RELEASE
34
BEARING LEFT REAR BACKREST
35
BOLT BRACKET BEARING
36
CABLE CLAMP BOWDEN CABLE
37
COVER LOCKING MECHANISM, 9051QFT203A9010 BLACK
40
BACKREST FRAME RIGHT
41
UNLOCKING RIGHT
41
LOCK FOR SEAT CUSHION RIGHT, Replaced By: A2039202272
42
BOLT UNLOCKING MECHANISM TO FRAME M8X50
43
PLATE LOCKING EYE
45
COVER LOCKING MECHANISM, 9051QFT203A9010 BLACK
50
REST LEFT
60
REST RIGHT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER LEFT
70
COVER REAR SEAT BACKREST LEFT
80
COVER RIGHT
80
COVER RIGHT
80
COVER REAR SEAT BACKREST RIGHT
80
COVER RIGHT
80
COVER RIGHT
80
COVER RIGHT
130
BEARING LEFT REAR BACKREST
140
BEARING RIGHT REAR BACKREST
150
CLIP COVER TO SEAT CUSHION
160
NUT RETAINER PROTECTIVE PLATE TO EXHAUST MUFFLER
170
HEXALOBULAR BOLTM8X16
180
BRACKET MAIN FLOOR FRONT
190
COVER MAIN FLOOR FRONT
200
HOUSING ANCHORING LUG
240
CLIP TRANSVERSAL TACKING
255
CLAMP UPHOLSTERY TACKING RIGHT 690MM
295
LINING RIGHT REAR BACKREST
295
LINING LEFT REAR BACKREST
295
LINING LEFT REAR BACKREST
300
LINING RIGHT REAR BACKREST
300
LINING RIGHT REAR BACKREST
350
BEARING OUTSIDE RIGHT,RIGHT SEAT
350
BEARING OUTSIDE LEFT,LEFT SEAT
410
GUIDE HEADREST INTO BACKREST
410
GUIDE HEAD RESTRAINT, WITH BUTTON
510
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
530
CLIP CONSOLE
575
CLAMP TO C-PILLAR RIGHT, J 43068720080929
575
CLAMP TO C-PILLAR LEFT, J 43068720080929
580
BOLT BRACKET M8X24
585
CONSOLE REAR BACKREST MOUNTING RIGHT
585
CONSOLE REAR BACKREST MOUNTING LEFT
590
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
600
BACKREST OUTSIDE LEFT
600
BACKREST OUTSIDE LEFT
600
BACKREST OUTSIDE LEFT
600
BACKREST OUTSIDE LEFT
600
BACKREST OUTSIDE LEFT
610
BACKREST OUTSIDE RIGHT
610
BACKREST OUTSIDE RIGHT
610
BACKREST OUTSIDE RIGHT
610
BACKREST OUTSIDE RIGHT
610
BACKREST OUTSIDE RIGHT
640
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
660
CLAMP BOWDEN CABLE TO CAB
