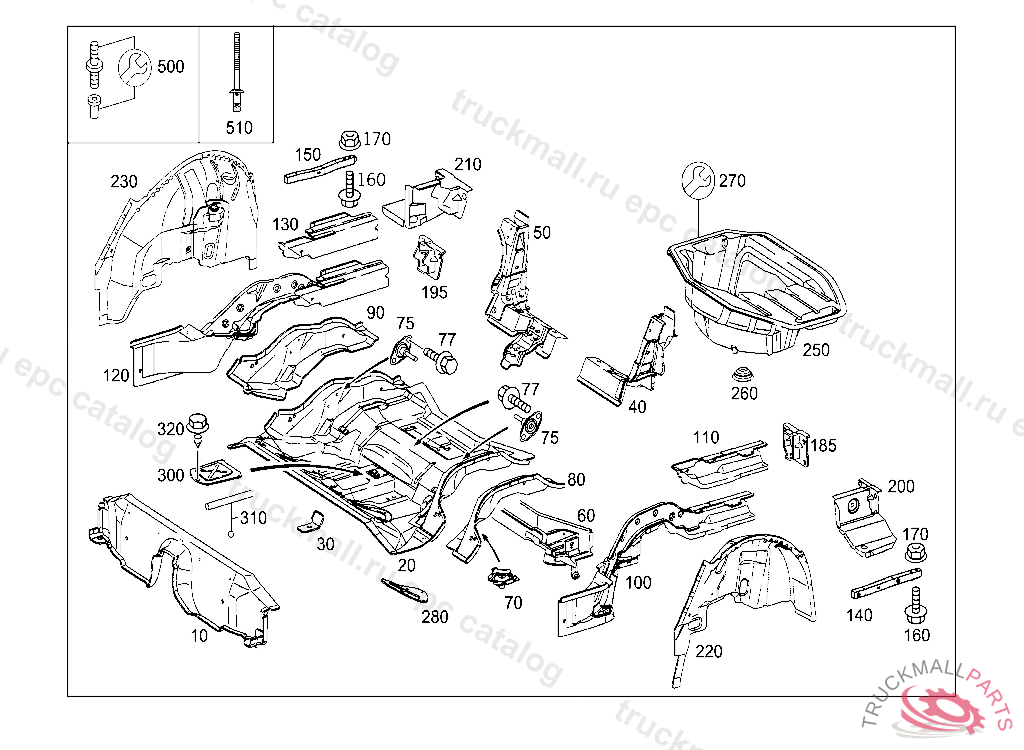

Поз.
Артикул
Описание
10
CROSS MEMBER CROSS MEMBER BELOW REAR SEAT
20
BOTTOM UNDERNEATH REAR SEAT
30
REINFORCEMENT SEAT BELT ATTACHMENT
40
CROSS MEMBER LOADING FLOOR,LEFT
50
CROSS MEMBER LOADING FLOOR,RIGHT
60
CROSS MEMBER ABOVE REAR AXLE
70
TAKE-UP DEVICE REAR AXLE MOUNTING,FRONT, E 01905120031031 A 57722620030829 F 47884220030831 R 12326120030902
75
BRACKET REAR BACKREST
77
BOLT BRACKET M8X24
80
SIDE MEMBER REAR CENTER TOP LEFT
90
SIDE MEMBER REAR CENTER TOP RIGHT
100
SIDE MEMBER REAR LEFT
110
SIDE MEMBER REAR LEFT, E 02000020070101 A 12956620010327
120
SIDE MEMBER REAR RIGHT
130
SIDE MEMBER REAR RIGHT
185
CONSOLE LEFT
195
CONSOLE RIGHT
200
END PIECE REAR LEFT
210
END PIECE REAR RIGHT
220
WHEELHOUSE REAR LEFT
230
WHEELHOUSE REAR RIGHT
250
SPARE WHEEL WELL
260
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
270
REPAIR KIT
280
COVER TANK PUMP
300
COVER FOOT OPERATED PARKING BRAKE
310
SEALING CORD , ORDER BY THE METER
320
SCREW
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
