Поз.
Артикул
Описание

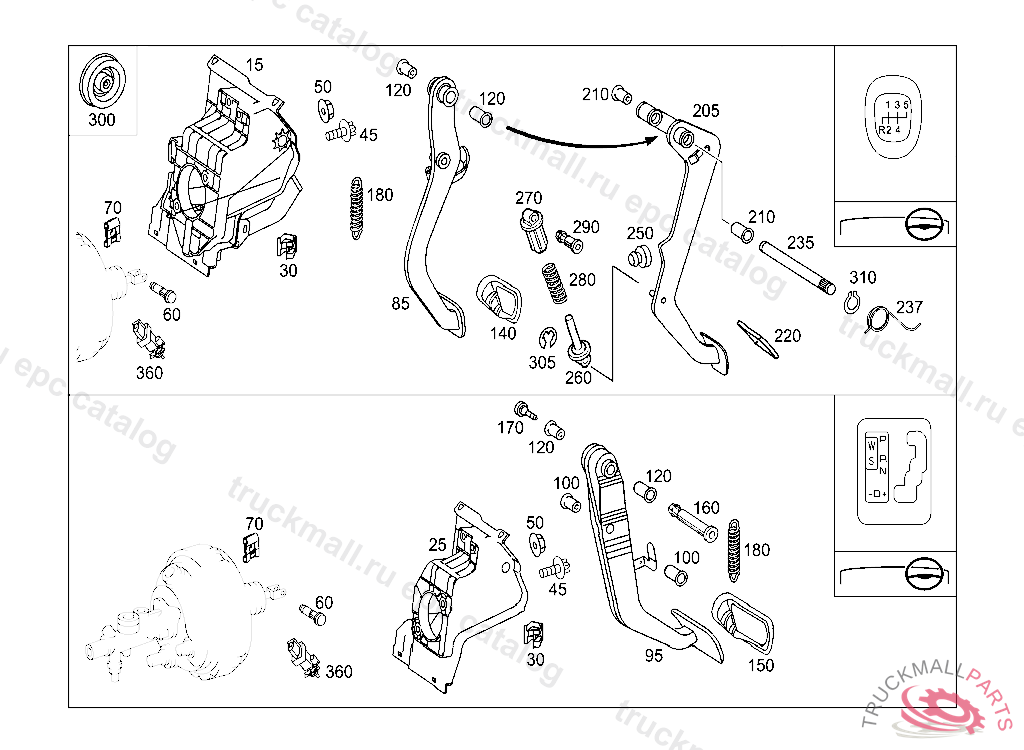

15
BEARING BRACKET PEDAL ASSEMBLY, E 01999920070101 A 63400820040210
15
BEARING BRACKET PEDAL ASSEMBLY, E 01938720050630 A 63400920040210 F 53925020040210 R 13944820040206 X 13944820040206
25
BEARING BRACKET PEDAL ASSEMBLY, E 02301020060303 A 89533520060301 F 80338320060201 X 25402420061117
25
BEARING BRACKET PEDAL ASSEMBLY, A 66602520040430 E 00000120000101 A 89533420060301 E 01999920070101
30
CLIP ON ODDMENTS TRAY,REAR
45
SCREW 3/2-WAY VALVE TO BRACKET
50
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
60
PIN BRAKE PEDAL TO BRAKE BOOSTER
70
LOCK PULL TO FASTENER
85
PEDAL BRAKE PEDAL
95
PEDAL BRAKE PEDAL
100
BUSHING
100
BUSHING PEDAL ASSEMBLY
120
BUSHING BRAKE PEDAL
140
PAD BRAKE PEDAL
140
PAD BRAKE PEDAL
150
PAD BRAKE PEDAL
150
PAD BRAKE PEDAL
160
PIN CLUTCH PEDAL TO BEARING BRACKET
170
PLUG
180
SPRING BRAKE PEDAL
180
SPRING BRAKE PEDAL RELEASE SPRING
205
CLUTCH PEDAL CLUTCH PEDAL
205
PEDAL CLUTCH PEDAL
210
BUSHING BRAKE PEDAL
220
PAD CLUTCH PEDAL
220
PEDAL COVER CLUTCH PEDAL
235
PIN CLUTCH PEDAL TO BEARING BRACKET
237
SPRING TO PEDAL ASSEMBLY
250
STOP CLUTCH PEDAL
250
STOP CLUTCH PEDAL
260
ROD
270
SPRING RETAINER OVER-CENTER ACTING SPRING
290
PIN SPRING RETAINER
300
EXPANSION PLUG FASTENING, LEFT TRIM, J 72081220090217
305
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
310
LOCK STOP TO BEARING BRACKET
360
SWITCH CLUTCH
360
SWITCH COUPLER SWITCH FOR IDLING SPEED CONTROL
