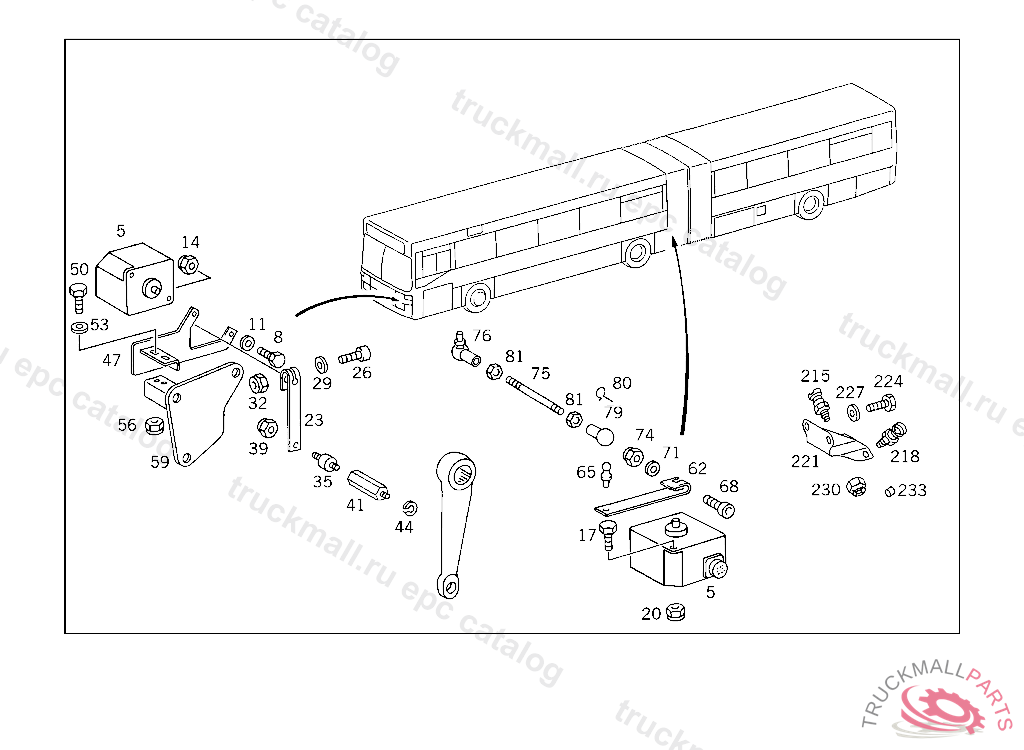

Поз.
Артикул
Описание
5
SENDER UNIT JACKKNIFING ANGLE
8
SCREW LICENSE PLATE TO BRACKET
8
SCREW , Replaced By: N304017006020
11
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
14
NUT PUMP TO BRACKET
14
NUT , Replaced By: N913004006001
17
SCREW , Replaced By: N304017006016
17
SCREW PUMP TO BRACKET
20
NUT PUMP TO BRACKET
20
NUT , Replaced By: N913004006001
23
LEVER STEERING ANGLE SENDER UNIT
26
SCREW SHIM TO LEAF SPRING
26
SCREW , Replaced By: N000912006175
26
SCREW , Replaced By: A0019907212
29
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
NUT PUMP TO BRACKET
32
NUT , Replaced By: N913004006001
35
BUFFER
35
BUFFER
39
NUT PUMP TO BRACKET
39
NUT , Replaced By: N913004006001
41
PIN RUBBER BUFFER TO PITMAN ARM
44
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
47
MOUNTING PLATE STEERING ANGLE SENDER UNIT BRACKET
50
SCREW , Replaced By: N304017008043
50
SCREW VALVE TO BRACKET M 8X55
53
WASHER , Replaced By: N000125008443
53
WASHER EXHAUST MUFFLER TO STRAP
56
NUT BRACKET TO SIDE MEMBER
59
BRACKET STEERING ANGLE SENDER UNIT
59
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 050830, Replaced By: A3575500340
62
LEVER JACKKNIFING ANGLE SENDER UNIT
65
BALL PIVOT LEVER
65
BALL PIVOT , Replaced By: A3129910120
68
SCREW , Replaced By: N000912006175
68
SCREW , Replaced By: A0019907212
68
SCREW SHIM TO LEAF SPRING
71
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
NUT PUMP TO BRACKET
74
NUT , Replaced By: N913004006001
75
PULL ROD ENGINE CONTROL, TO BE ADAPTED DURING ASSEMBLY
76
ANGLE JOINT JACKKNIFING ANGLE SENDER UNIT
79
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
80
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
81
NUT L.H. THREAD
215
SENDER UNIT , Replaced By: A0105428717
215
SENDER UNIT , Replaced By: A0125425317, +001A3565400281
215
SENDER UNIT (COUNTER WHEEL SENDER)
218
SENDER UNIT , Replaced By: A0105428217
218
SENDER UNIT , Replaced By: A0125424817, +001A3565400381
218
PULSE SENDER UNIT. SENDER UNIT (COUNTER WHEEL SENDER)
221
BRACKET , Replaced By: A6122700141
221
BRACKET COUNTER WHEEL SENDER ON HOUSING
224
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
227
WASHER BRACKET TO FRAME
227
WASHER , Replaced By: N000125017016
230
NUT BRACKET TO SIDE MEMBER
233
LEAD SEAL ROCKER SWITCH
233
LEAD SEAL ROCKER SWITCH, Replaced By: A0009883070
999
CYLINDER GASKET KIT WEBER
999
CONTROL UNIT JACKKNIFING-ANGLE/DAMPING REGULATION, NOT USED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SWITCHTO 001 553 71 02
999
FITTING , Replaced By: N003901018008
999
VALVE CLUTCH SLAVE CYLINDER
999
FITTING REDUCTION FITTING, NOT USED
999
WASHER , Replaced By: N000125008443
999
SCREW , Replaced By: N304017008027
999
SEAL RING LINE CONNECTION
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT , Replaced By: N913004008001
999
UNION NUT LINE MOUNTING
